Customized PCB Separator Machine for Different Customer Requirements

Ask Lasest Price
Brand Name :	Chuangwei
Model Number :	CWV-1A460
Certification :	CE ISO
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	300 sets per month
Delivery Time :	5 days after payment confirm

Add to Cart

Product Details
Company Profile

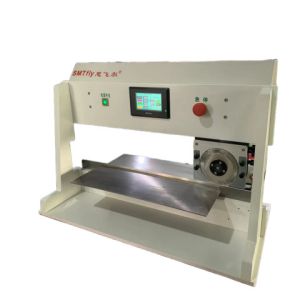

Customized PCB Separator Machine for Different Customer Requirements

Optional Depaneling Stroke PCB Depaneling With Circular And Linear Blades

Why us

1. Engineers available to service machinery oversea.
Engineers are available to be sent to freign countries to do machinery training and offer technical support

2. Mature technique & forerunner to process makes high quality machinery.
As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router
Our R&D team continuously upgrade the existing machines to meet the market development trend.

3. One year warranty for the machines except accessories.
Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge

4. Effective customer service.
All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers

Our mission
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Our Vision:
Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success

Technical parameters

Model	CWV-1A
Max. PCB cutting length	460 or 600 mm(on request custom made)
PCB cutting thickness	0.6-3.5 mm
PCB cutting speed	100,200,300,500 mm/sec
Blade motion	upper circular blade moving automatically
Blade motive power operating mode	motor-driven
Power supply	110/220v
PCB cutting machine size	770510450mm
PCB cutting machine weight	55kg

Feature:

1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out

Competitive advantage

1. LCD display:you can adjust the blade moving trip according to your pcb length.
2. Safety sensor:Installed electronic safe sensor to protect our hands from depaneling when you put your hands near the blades,the machine stop working even though the operator step on pedal switch.
3. It has 4 speed positions.
4. counting function

Cooperative clients

CE certification

More information welcome to contact us:

Email: sales@dgwill.com
Wechat/Skype:+86 15273473462

24 Hours Service,Welcome to Inquiry!!
