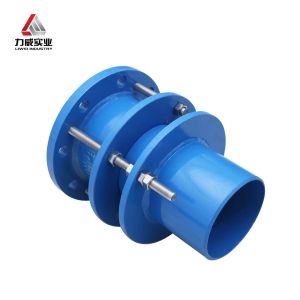

Flange Steel Joint DIN PN10/ANSI 150LB Strength

    Buy cheap Flange Steel Joint DIN PN10/ANSI 150LB Strength from wholesalers

    Buy cheap Flange Steel Joint DIN PN10/ANSI 150LB Strength from wholesalers
    • Buy cheap Flange Steel Joint DIN PN10/ANSI 150LB Strength from wholesalers
    • Buy cheap Flange Steel Joint DIN PN10/ANSI 150LB Strength from wholesalers

    Flange Steel Joint DIN PN10/ANSI 150LB Strength

    Ask Lasest Price
    Brand Name : liwei
    Model Number : DN65-DN3200
    Certification : ISO9001, TUV, WRAS, CO, MTC, PL, IV etc
    Price : Price Negotiable
    Delivery Time : After payment 15-30 working days
    Payment Terms : T/T, Western Union, L/C, D/A, MoneyGram
    Supply Ability : 1000 sets per Month
    • Product Details
    • Company Profile

    Flange Steel Joint DIN PN10/ANSI 150LB Strength

    Flange Steel Joint with Load Capacity Easy Installation DIN PN10/ANSI 150LB Strength

    Product Description:

    Force transfer joints are also called expansion joints, compensators,steel joint. They are composed of body, sealing rings, caps, extension and shortening tubes, etc. It is a new product that connects pumps, valves and other equipment with pipelines. It connects them into a whole through full bolts, and has a certain displacement. In this way, it can be adjusted according to the installation size on site during installation and maintenance, and the axial thrust can be transferred back to the whole pipeline during work. This not only improves work efficiency, but also protects pumps, valves and other equipment.

    Advantages:

    1.Installation is simple and convenient, convenient valve installation.

    2.Rubber is strong in compression and elasticity.

    3.Metal and sealing rings are highly stringent.

    4.In the pipeline, it can effectively compensate and ease the pipe and blind plate thrust.

    The dismantling joint is suitable for pipelines with flanges on both sides. When installing, the installation length of both ends of the product and flanges can be adjusted,can tighten the bolt of the pressure cap evenly, making it an integral whole with a certain displacement. It is convenient to install and repair, and it can be adjusted according to the size of the site.

    Technical Parameters:

    DNPipe
    diameler
    Outine
    dimenson
    Flange connection dimensions
    0.6Mpa1.0Mpa
    DWLL1DD1n-TnbDD1n-Tnb
    6576200401601304-M12161851454-M1620
    80891901504-M16182001608-M1622
    1001142101704-M16182201808-M1624
    1251402402008-M16202502108-M1626
    1501682652258-M16202852408-M2026
    2002193202808-M16223402958-M2028
    25027337533512-M162439535012-M2028
    3003252205044039512-M202444540012-M2028
    35037749044520-M202650546016-M2030
    40042654049520-M202856551516-M2432
    45048059555020-M202861556520-M2432
    53053064560020-M203067062020-M2434
    60063024075570520-M243078072520-M2736
    70072086081024-M243289584024-M2740
    8008203506097592024-M2734101595024-M3044
    9009201075102024-M27361115105028-M3046
    100010201175112028-M27361230116028-M3050
    120012203701405134032-M30401455138028-M3356
    140014201630156036-M33441675159032-M3662
    160016203801830176040-M33481915182036-M3968
    180018202045197044-M36502115202040-M4570
    200020204002265218048-M39542325223048-M4574
    220022202475239052-M39602550244052-M5280
    240024202685260056-M39622760265056-M5282
    26002620450802905281060-M45642960285060-M5288
    280028203115302064 -M45683180307064 -M5294
    300030203315322068-M45703405329068-M56100
    320032203525343072-M4576

    Applications:

    The liwei Steel joint product is a high-quality Flange Coupling Compensator designed to provide maximum strength and durability. The product is made of galvanized steel joint sleeve, making it resistant to corrosion and rust. With a model number of DN65-DN3200, this product is suitable for a wide range of applications in various industries.Its high strength, durability, and customizable features make it an ideal choice for anyone looking for a high-quality steel joint product.

    Packing and Shipping:

    Product Packaging:

    The steel joint product will be packaged in a sturdy cardboard box to ensure it arrives safely at your doorstep. Each joint will be individually wrapped in bubble wrap to prevent any damage during transit. The box will also contain an instruction manual to guide you through the installation process.

    Shipping:

    We offer free standard shipping within the United States. The estimated delivery time is 5-7 business days. For expedited shipping, please contact us for additional fees and estimated delivery times. International shipping is also available, but additional fees may apply.

    FAQ:

    Q1. What is the brand name of this product?

    A1. The brand name of this product is liwei.

    Q2. What is the model number of this product?

    A2. The model number of this product is DN65-DN3200.

    Q3. What is the place of origin for this product?

    A3. This product is made in Henan, China.

    Q4. What certifications does this product have?

    A4. This product is certified with ISO9001, TUV, WRAS, CO, MTC, PL, IV, and other relevant certifications.

    Q5. What is the minimum order quantity for this product?

    A5. The minimum order quantity for this product is 1 set.

    Q6. What is the price of this product?

    A6. The price of this product is negotiable.

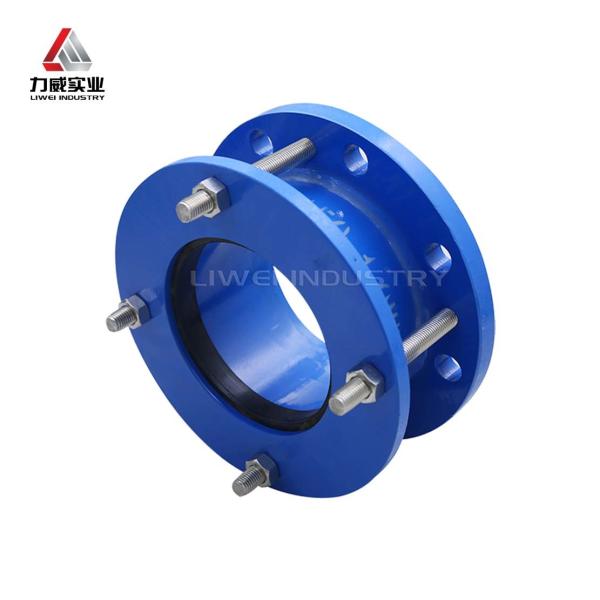

    Quality Flange Steel Joint DIN PN10/ANSI 150LB Strength for sale
