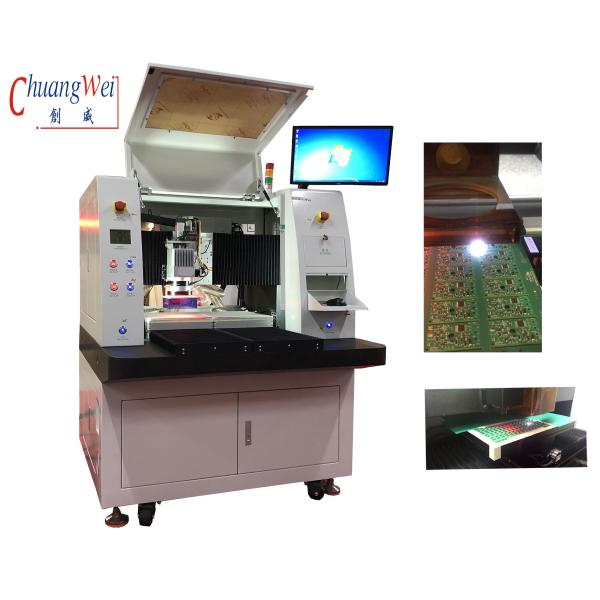

FCC Laser PCB Depaneling Machine With Offline Separator 0.02
Precision 335mm
PCB Laser Depaneling Separator 0.02 Precision 335mm
Laser PCB Depaneling Machine With Offline Separator 0.02 Precision
335mm
Features:
1.Dual working tables can be used alternately to increase the
production capacity significantly.
2. Double working tables can be combined and accessed at the same
time, suitable for cutting large-size products.
3. High cutting precision and less black carbonization.
4. The platform extends, which is conducive to picking and placing
materials, saving the frequent opening of the door.
5. Automatic real-time focusing to ensure cutting at the focal
point.
6. Compact model, easy to transport and install.
Specification:
| Specification |
| Cutting accuracy of the whole machine: 0.03mm | humidity: ＜60% |
| size of processed products: 330*330mm/330*670 | floor loading: 1500kgf/m2 |
| moving speed of the platform:300mm/s | human-computer operation and data storage:industrial computer |
| processing speed of the vibration mirror: ≤50000mm/s | size of the host computer: 1250*1300*1600 (L X H X D)mm |
| minimum processing line width: 0.002mm | Machine Weight: 1500 Kg |
| positioning accuracy of the platform: 0.003mm | Equipment Source: AC220/3KW |
| operation interface: Chinese/English interface | operating system: Windows7 |
| repeatability of the platform: 0.003mm | processing picture file: Gerber或DXF |
| size of the dust collector: 500*650*900 (L X H X D)mm | compensation for shrinkage and expansion: Automatic compensation of
MARK points |
| ambient temperature: 20±2℃ | dust collector: 1.5KW |
| power supply of the dust collector: AC 220V 50/60Hz | dust collector weight: 85Kg |
Our Service:
A. Pre-consultation:provides professional SMT solution for the full
line;
B. Factory Warranty:One-year warranty factory service;
C. Installation:On-site installation and commissioning,to ensure
smooth production;
D. Technical Training:provides professional training from level 1
to level 3;
E. Technical Support:provides 7 days * 24 hours technical support;
F. Software Upgrade:offer lifetime free software upgrades for all
products.
