5ft 6ft 7ft 8ft High Tensile Steel Wire Cattle Deer Horse Field
Fence
Deer Fence Description

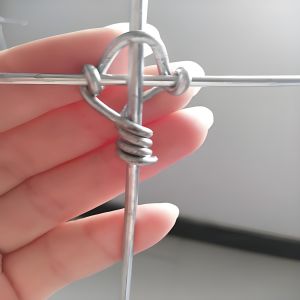

Fixed knot deer fence is the strongest fence type with increased
post spacing, highest visibility and low maintenance-which takes
advantage of fixed knots formed by using separate wires to tie the
continuous horizontal and vertical wires together without sliding.
Deer Fence Specifications
1. Materials: Low carbon galvanized wire, hot dipped galvanized
high carbon wire, low
carbon cold galvanized wire.
2. Knot types:Hinge Kont & Fixed Knot
3. Surface treatment:
Class a: Hot dipped galvanized hinge joint field fece(zinc
coated:220-260g/m2)
Class b: Hot dipped galvanized hinge joint field fence(zinc
coated:60-70g/m2)
Class c: Electro galvanized hinge joint field fence(zinc
coated:15-20g/m2)
4. Mesh wire diameter:1.8mm~2.5mm
5. Edge wire diameter: 2.0mm~3.2mm
6. Opening in cm: (Warp) 15-14-13-11-10-8-6; (Weft)
15-18-20-40-50-60-65
7. Height: 0.8m,1.0m,1.2m,1.5m, 1.7m, 2.0m, 2.3m. We can also make
as the
request of the customer.
8. Length: 50m-100m(According to the request of the customer)
| NO. | Specification | Weight | Bottom | Dia. |
| Type | Specification | ( kg) | (mm) | (mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 2 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 2 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26 | 2.5 | 2 |
| 7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |
Application
fixed knot fence
hinge joint fence
square deal knot fence
diamond mesh fence
woven wire fence
Widely Range Uses And Features
Field Fence Usage
Raising livestock
Prevent predators from entering
Keeping animals away from roads and highways
Protecting fisheries and ponds
Protecting crop
Land fencing and side line dividers.
FAQ
Q: Are you a manufacture?
A: Yes, we have been in providing the products in this field for 20
years.
Q: Is customized available?
A: Yes, according to your detailed drawings you provide.
Q: Can I get a pcs of your product samples?
A: Yes, free samples will be provided anytime.
Q: What's the payment terms?
A: Usually 30%as deposit, 70%should be pay off before leaving the
factory.
Q: What is your usual delivery date?
A: For stocks products, we will load and transport the product to
port during 7 working days after receive the advanced payment. For
customized products, we need 20- 30 days for the delivery after
receive the advanced payment.
Company Information
Anping Laidi Wire Mesh Product Co.,ltd located in Anping County,
the Native Land of Wire Mesh in China,mainly produce all kinds of
wire mesh fence and wire mesh , wire and so on produts. we do
export more than 10years.
Our products are well sold in China and around the world, exported
to Canada,America,
Dubai,India,Australia,Kenya,Tanzania and other countries.
Fence Antatomy
Quality Control
Packing & Delivery
