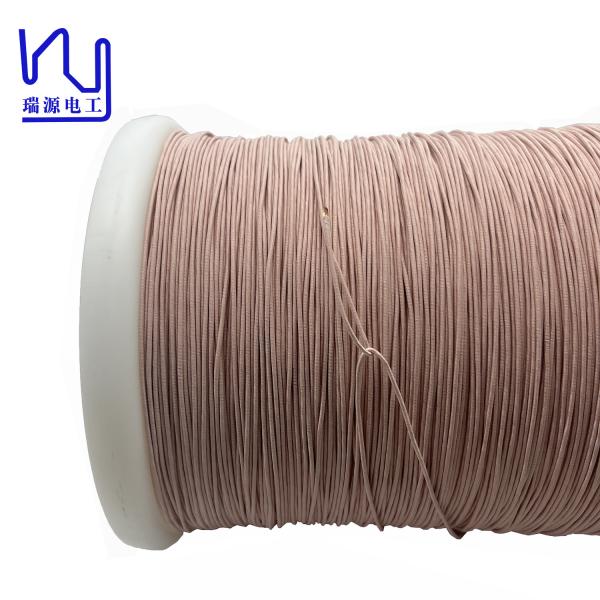

Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For
Motor Windings
Ruiyuan Company specializes in the customization of silk covered
litz wire, offering a range of options to meet specific
requirements.
The single wire diameter is 0.08mm, 105 strands, and the
temperature resistance level is 155. In addition, higher grade 180
wire covered litz wire is available for applications requiring high
temperature resistance.
| Product name: | Class 155 Litz Wire 0.08mm*105 Silk Covered Copper Conductor For
Motor Windings |
| Item | Unit | Technical requests | Sample 1 | Sample 2 |
| Conductor Diameter | mm | 0.08±0.003 | 0.078 | 0.080 |
| Single wire diameter | mm | 0.091-0.120 | 0.098 | 0.100 |
| O.D. | mm | Max.1.39 | 1.09 | 1.21 |
| Resistance (20℃) | Ω/m | Max.0.03595 | 0.03308 | 0.03310 |
| Breakdown Voltage | V | Min.2000 | 5400 | 4600 |
| Pitch | mm | 29±5 | ok | ok |
| No. of strands | | 105 | ok | ok |
