Description YFP Hand-Held Pneumatic High Pressure Pump Calibrating Various
Differential Pressure
YFP type vacuum pressure hand pump is a quick hand pressure source,
by adjusting the pressure vacuum valve can realize the vacuum
pumping and positive pressure, suitable to calibrate kinds of
differential pressure, vacuum, vacuum pressure and pressure
instrument, and also can be used as vacuum pressure source of the
above pressure instrument. Characteristic of compact size, light
weight, easy to operate, hand held, can can be matched to vacuum
pressure instrument.

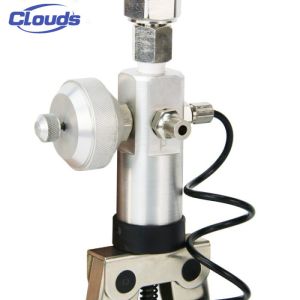

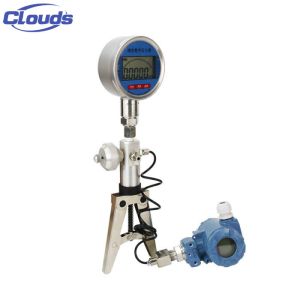

Detailed Images
Detailed Images YFP Hand-Held Pneumatic High Pressure Pump Calibrating Various
Differential Pressure
Specification YFP Hand-Held Pneumatic High Pressure Pump Calibrating Various
Differential Pressure
Output pressure: -0.088~1.6MPa(-0.88~16bar)
-0.088~2.0MPa(-0.88~20bar)
-0.088~2.5MPa(-0.88~25bar)
2. Work Environment: Temperature: 0~40℃
Relative Humidity: 5~95%
3.Accessories: adapter: 1/4NPT (Male) to M14x1.5 (Female) 1 Piece
Features
1.Portable, light weight,,Suppression of light.Easy to use
Structural design pressure fine-tuning hand,Rotate the fine-tuning
hand can easily change the output pressure.Also comes with a
high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas,
pump cover, put the oil hand, fine-tuning hand, form joint, etc
.rotation.
Applications YFP Hand-Held Pneumatic High Pressure Pump Calibrating Various
Differential Pressure
It is suitable for calibrating various differential pressure,
vacuum pressure and pressure instruments, and can also be used as a
vacuum pressure source for the above pressure instruments.
| Model Number | Pressure Range | Medium |
| Y039 | 0 ~ 1.6Mpa | Pneumatic/Barometric Pressure |
| Y061 | -0.1 ~ 0Mpa | Pneumatic/Barometric Pressure |
| Y060 | 0 ~ 25Mpa | Hydraulic Pressure |
| YFP-1.6 | -0.1 ~ 1.6Mpa | Pneumatic/Barometric Pressure |
| YFP-2.0 | -0.1 ~ 2.0Mpa | Pneumatic/Barometric Pressure |
| YFP-2.5 | -0.1 ~ 2.5Mpa | Pneumatic/Barometric Pressure |
| XYSB60 | 0 ~ 60Mpa | Hydraulic Pressure |
