1. Product name: S20 cement lime Oli quick connect pneumatic fittings Paint &
Varnish Steel Alloy Roller
2. Suit for
| PRODUCT SERIES | APPLICATIONS | POWDERS | FEATURES | BENEFITS |
| S | Silos | Dry powders | Filter sleeve cleaning | Economical |
| Hoppers | Granules | Suitable for outdoor use | Low air consumption |
| Piping | Plastics | Resistant to oxidation | High frequency vibration |
| Chutes | Sand | Atex II2G c Tx | |
| Compacting | Ashes | Atex II2D c Tx | |
| Cement | | |
| Lime | | |
3. Delivery
1. If the products we have in store, we will send it out ASAP after
payment.
2. If the products which were customized, we will complete the
production within a specified period of time, and send it out the
first time, we can promise it.
3. We have a variety of ways to deliver goods, usually DHL, Fedex,
TNL will be normal ways, If you require use of a courier, we can do
it.
4. Also we can send by your delivery acount if you want.

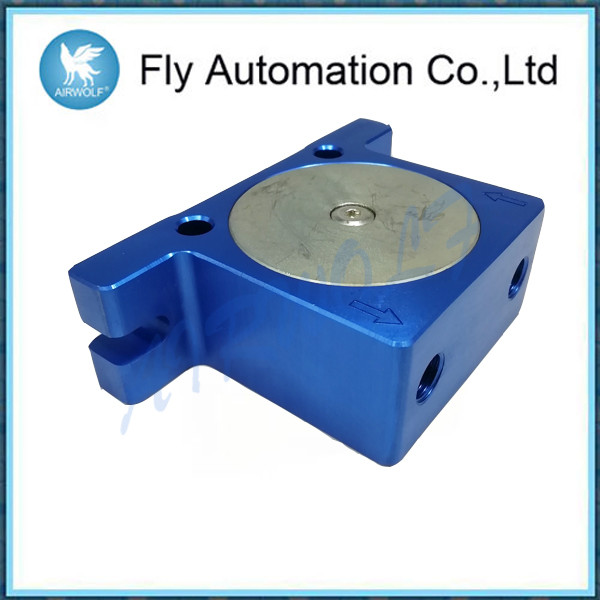

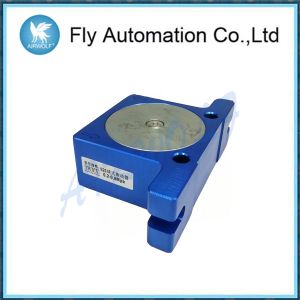

4. Product show
5. Applies to
1. Animal Feed Milling
2. Flour Milling
3. Paint & Varnish Processing
4. Plastics Processing
6. Data
| MODEL | VIBRATION | F.C. MAX | AIR CONSUMPTION |
| Vpm | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) | 2 bar (29 psi) | 4 bar (58psi) | 6 bar (87 psi) |
2 bar
(29 psi) | 4 bar
(58psi) | 6 bar
(87 psi) | KG | LB | KG | LB | KG | LB | l/min | CF/min | l/min | CF/min | l/min | CF/min |
| S8 | 25500 | 31000 | 35000 | 13 | 29 | 26 | 57 | 36 | 79 | 83 | 2.9 | 145 | 5.1 | 195 | 6.9 |
| S10 | 22500 | 28000 | 34000 | 25 | 55 | 47 | 103 | 71 | 156 | 92 | 3.2 | 150 | 5.3 | 200 | 7.1 |
| S13 | 15000 | 18500 | 22500 | 32 | 70 | 55 | 121 | 87 | 191 | 94 | 3.3 | 158 | 5.6 | 225 | 7.9 |
| S16 | 13000 | 17000 | 19500 | 45 | 99 | 80 | 176 | 110 | 242 | 122 | 4.3 | 200 | 7.1 | 280 | 9.9 |
| S20 | 10500 | 14500 | 16500 | 72 | 158 | 122 | 268 | 172 | 378 | 130 | 4.6 | 230 | 8.1 | 340 | 12 |
| S25 | 9200 | 12200 | 14000 | 93 | 205 | 157 | 345 | 205 | 451 | 160 | 5.7 | 290 | 10.2 | 425 | 15 |
| S30 | 7800 | 9700 | 12500 | 151 | 332 | 247 | 543 | 321 | 706 | 215 | 7.6 | 375 | 13.2 | 570 | 20.1 |
| S36 | 7300 | 9000 | 10000 | 206 | 453 | 315 | 693 | 405 | 891 | 260 | 9.2 | 475 | 16.8 | 675 | 23.8 |
7. Drawing
| DIMENSIONAL SPECIFICATIONS |
| MODEL | A | B | C | D | E | F | IN-OUT | WEIGHT |
| mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | kg | lb |
| S8 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.29 |
| S10 | 50 | 2 | 86 | 3.4 | 68 | 2.7 | 12 | 0.5 | 20 | 0.8 | 7 | 0.3 | 1/8" BSPP | 0.13 | 0.9 |
| S13 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 25 | 1 | 9 | 0.4 | 1/4" BSPP | 0.26 | 0.57 |
| S16 | 65 | 2.6 | 113 | 4.5 | 90 | 3.5 | 16 | 0.6 | 28 | 1.1 | 9 | 0.4 | 1/4" BSPP | 0.3 | 0.66 |
| S20 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 33 | 1.3 | 9 | 0.4 | 1/4" BSPP | 0.53 | 1.17 |
| S25 | 80 | 3.2 | 128 | 5.1 | 104 | 4.1 | 16 | 0.6 | 38 | 1.5 | 9 | 0.4 | 1/4" BSPP | 0.63 | 1.39 |
| S30 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 45 | 1.8 | 11 | 0.4 | 3/8" BSPP | 1.13 | 2.49 |
| S36 | 100 | 3.9 | 160 | 6.3 | 130 | 5.1 | 20 | 0.8 | 50 | 2 | 11 | 0.4 | 3/8" BSPP | 1.34 | 2.95 |
8. S - ROTARY PNEUMATIC VIBRATORS - BALL
APPLICATION: Hopper and silo - screen - vibrating table - chute
POWDER: Dry and granular
PROBLEM SOLVING: Friction reduction - separation
9. Features
DUTY CYCLE: Continuous
WORKING PRESSURE: From 2 bar to 6 bar (from 29 psi to 87 psi)
PNEUMATIC CIRCUIT: Filter + flow control valve + lubrification +
3/2 ways valve
AIR SUPPLY QUALITY: Class 5.4.4.
WORKING TEMPERATURE: From -20 °C to 200 °C (from -4 °F to 392 °F)
MAX NOISE LEVEL: 90 dB(a)
TECHNOLOGY: Rotary vibration - high frequency
ATEX: II 2D C TX, II 2G C TX
MATERIAL: Aluminium body and zinc plate cover
