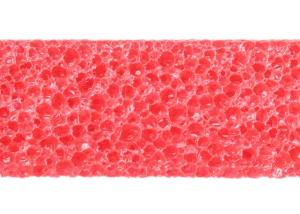

PXL FOAM physically cross linked polyolefin foam with superior
softness and sound absorption properties
Electronic cross-linked polyethylene foam also named Physical
crosslinked polyethyele foam, Irradiation crosslinked polyethylene
foam.Common abbreviations IXPE foam, IXLPE foam.It is made of
low-density polyethylene (LDPE), AC foaming agent and other powders
after being melted, mixed and extruded, and then foamed at high
temperature. IXPE has finer cells, smoother surface and better
mechanical properties than XPE.
Production process: compounding-extrusion-irradiation-foaming.
Note: IXPE foam can be made anti-static (we will talk about
anti-static IXPE later), but XPE cannot (theoretically it is
possible, but our company does not currently produce).
The said product is a close-cell, conductive foam. It is produced
by compounding the PE resin with conductive fillers &
blowing agents to extrude certain sheets,then cross-linking and
foaming. The basic process can be summarized to the following:
1 Pellitizing master batch by compounding PE resin with carbon
black and AC foaming agents;
2 Extrude the said batch to make certain sheets with different
thickness & width;
3 Cross link the said sheets under electric beam;
4 Make the cross linked sheets foam in foaming furnace
Specifications
- Foam Type: IXPE FOAM / IXLPE FOAM
|
| Property | Standard | Unit | Value |
| Density | - | Kg/m³ | 83.00 |
| Tensile Strength | Transverse | ISO-1798 | MPa | 0.65~0.67 |
| Longitudinal | | | 0.98~1.00 |
| Elongation | Transverse | ISO-1798 | % | 171.11~198.50 |
| Longitudinal | | | 164.30~192.60 |
| Tearing Strength | Transverse | ISO-8067
| Kn/m | 3.55~3.82 |
| Longitudinal | | | 4.80~5.00 |
| Operating Temperature Range | Internal | °C | (-40,+80) |
| Water Absorption % Volume (Maximum) | Internal | % | 0.20 |
| Thermal Conductivity | JIS A1412-2 | W/mK | 0.095 |
| Shore - C | ASTM D2240 | °C | 55 |
| Flammability | FMVSS302 | mm/min | - |
Features
Water durable: Closed-cell foam, non-water-absorbing,
moisture-proof.
Rot resistant: Seawater, oil, acid and alkali durable;
Antibacterial, safe, odorless and non-polluting.
Easy processing: Continuous; Easy hot-press shaping, casting,
gluing and joining.
Shockproof: Good flexibility and anti-hardening; Excellent
shockproof and cushion capability.
Heat preservation: Excellent heat insulation, anti-cold,
non-frosting and insulation enduring capabilities.
Sound insulation: Closed-cell foam, good sound insulation
capability.
Qur services
Factory direct selling with competitve price, sooner
leadtime,better customized services.
Samples in stock can be arranged in one working day.
