Product Description:

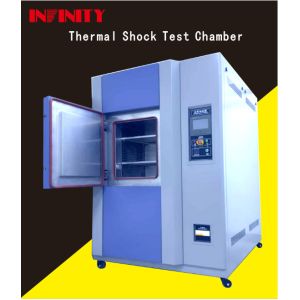

Thermal Shock Test Chamber
Product Overview
The Thermal Shock Test Chamber is a state-of-the-art testing
equipment designed for evaluating the resistance of materials to
extreme temperature changes. It is widely used in various
industries such as electronics, aerospace, automotive, and more.
The chamber's temperature uniformity is equal to or less than 2.0℃,
ensuring accurate and reliable test results. It comes in four
different sizes - 80L, 150L, 225L, and 408L, providing flexibility
for different testing needs. The chamber is equipped with advanced
features such as a programmable controller, touch screen display,
and multi-language interface for easy operation and monitoring.
Key Features
| Temperature Uniformity | ≦2.0℃ |
|---|
| Test Chamber Size | 80L/150L/225L/408L |
|---|
| Condenser System | IE31 80L-100L: Air-cooled
IE31 150L-408L: Water-cooled |
|---|
| Sample Holder | Stainless Steel Sample Rack 2 Layers
Height Adjustable
Bearing Weight 30kg/Layer |
|---|
| Test Standards | GB/T2423.1-2001 Low Temperature Test Method
GB / T2423.2 - 2001 GB/T2423.22-1989 Temperature Change Test
National Military Standard GJB150.3-86
National Military Standard GJB150.4-86
National Military Standard GJB150.5-86
GJB150.5-86 Temperature Shock Test
GJB360.7-87 Temperature Impact Test
GJB367.2-87405 Temperature Impact Test
J/T10187-91Y73 Series Temperature Change Test Box - Three Box Type
Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change |
|---|
Note: The above-mentioned test standards are for reference only.
Customized test standards are also available upon request.
Product Types
Our Thermal Shock Test Chamber comes in three types to meet
different testing requirements:
- Programmable High-Low Temperature Shock Test Chamber: This type of chamber can perform high and low temperature shock
tests on the same sample, simulating extreme environmental
conditions and evaluating the material's resistance to thermal
shocks.
- Programmable Alternating Thermal Shock Chamber: This type of chamber can alternate between high and low
temperature shocks in a rapid and controlled manner, simulating
real-world conditions and testing the reliability of materials
under extreme temperature changes.
- Programmable Hot Cold Shock Test Chamber: This type of chamber is specifically designed for testing products
that will be exposed to extreme temperature changes during their
lifetime, such as automotive parts, electronic components, and
more.
Choose the right type of chamber based on your testing requirements
and ensure the quality and reliability of your products.
Applications:
INFINITY IE31 Series Thermal Shock Testing Chamber
This thermal shock test chamber, also known as a programmable
temperature impact test chamber, is designed and produced by
INFINITY, a leading manufacturer of environmental test chambers in
China. It is suitable for various industrial settings and can be
used for testing the impact of extreme temperature changes on
products.
Product Features:
- Brand Name: INFINITY
- Model Number: IE31 Series
- Place of Origin: MADE IN CHINA
- Certification: CE, ISO
- Minimum Order Quantity: 1
- Price: Negotiate
- Packaging Details: Clear sheet+sponge+wood carton
- Delivery Time: 20-30 days after order confirmed
- Payment Terms: TT, PAYPAL, Moneygram and so on
- Supply Ability: 200 sets/month
- Type: Thermal Shock Testing Chamber
- Test Chamber Size: 80L/150L/225L/408L
- Outer material of the chamber: High Quality Carbon Steel Plate,
Surface For Electrostatic Color Spray Treatment. The Left Side Of
The Box Is φ50mm Diameter Hole.
- Power supply: IE31 80L -100L: AC380V;50Hz;18KW IE31 150L - 225L:
AC380V;50Hz;22KW; IE31A 408L: AC380V;50Hz;25KW
- Condenser system: IE31 80L-100L: Air-cooled; IE31 150L-408L:
Water-cooled
Applications and Scenarios:
This thermal shock testing chamber is suitable for a variety of
industrial applications, including but not limited to:
- Electronics and semiconductor industry: This chamber can be used to
test the impact of extreme temperature changes on electronic
components and circuits, ensuring their reliability and durability.
- Automotive industry: It can be used to simulate the extreme
temperature changes that vehicles may experience during their
lifetime, ensuring the quality and safety of automotive parts.
- Pharmaceutical industry: The chamber can be used to test the
stability and shelf life of drugs under extreme temperature
changes, ensuring their effectiveness and safety.
- Aerospace industry: It can be used to test the impact of extreme
temperature changes on aircraft and spacecraft components, ensuring
their reliability and safety.
- Material science: This chamber can be used to study the thermal
shock resistance of various materials, providing valuable data for
material research and development.
The IE31 Series thermal shock test chamber is also suitable for
various scenarios, such as research and development laboratories,
quality control departments, production lines, and testing
facilities. It can be used for various types of testing, including
but not limited to:
- Programmable Temperature Impact Test: The chamber can simulate
rapid and extreme temperature changes to test the impact on the
product under test.
- Programmable Thermal Cycling Shock Test: This test can evaluate the
reliability and durability of products under repeated temperature
changes.
- Programmable Humidity Thermal Shock Test: The chamber can simulate
the impact of both temperature and humidity changes on products,
which is crucial for products that are exposed to different
environments.
Overall, the INFINITY IE31 Series Thermal Shock Testing Chamber is
a reliable and versatile tool for testing the impact of extreme
temperature changes on products, ensuring their quality and
reliability. It is a must-have for industries that require
high-quality and durable products. Contact us today to learn more
about this product and how it can benefit your business.
| Model | IE 3180L | IE 31100L | IE 31150L | IE 31225L | IE 31408L |
| Temperature Range | -40℃ ～ +150℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Uniformity | ≦2.0℃ |
| Temperature Recovery Time | Within 5 min |
| Heating rate (heat storage area) | Up from RT to + 150℃ About 35m in is required | Up from RT to + 150℃ About 40m in is required |
| Cooling rate (cold storage area) | Down from RT to-40℃ Approximately 55min is required | Down from RT to-40℃ Approximately 60min is required |
Internal box size: WxHxD(mm ) | 500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 |
Out chamber size: WxHxD(mm ) | 1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 |
| Thermal insulation box | ● Outer wall material: high quality carbon steel plate, the surface
for electrostatic color spray plastic treatment. The left side
diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal
insulation layer + glass fiber. |
| Box door | Open the door alone, add the door frame heating wire at the door
frame to prevent condensation at the door frame at low temperature. |
| Observation window | A W 300 H 400mm observation window is installed on the box door.
Multi-layer insulating electric thermal coated glass can
effectively provide heat preservation and prevent condensation. |
| Specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing
weight of 30kg / layer. |
| Refrigeration Compressor | France Tecumseh fully closed compressor | France Tecumseh fully closed compressor | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany |
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply
with environmental protection regulations, safe and non-toxic |
| Condenser mode | air-cooled | air-cooled | water-cooled | water-cooled | water-cooled |
| Safety protection device | Heater air defense incineration protection; heater over current
protection; circulation fan over current overload protection;
compressor high pressure protection;. Compressor overheat
protection; compressor over current protection; over voltage under
reverse phase protection; circuit breaker; leakage protection. |
| Power source | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Customization:
INFINITY IE31 Series Thermal Shock Test Chamber - Customized
Service
Brand Name: INFINITY
Model Number: IE31 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Test Chamber Size: 80L/150L/225L/408L
Chamber Volume Size: 80L To 408L
Product Name: Programmable Thermal Shock Test Chamber
Temperature Recovery Time: Within 5 Mins
Condenser System: IE31 80L-100L : Air-cooled; IE31 150L-408L:
Water-cooled
Key Words: Programmable Cryogenic Thermal Shock Chamber,
Programmable Thermal Shock Chamber, Programmable Thermal Shock
Chamber Manufacturer
Packing and Shipping:
Packaging & Shipping
1. Standard export wooden box packaging.
2. All parts are carefully packed to prevent any damage during
transportation.
3. We can also customize packaging according to customer's specific
requirements.
4. Shipping method: By sea, by air or by express (DHL, UPS, FedEx,
TNT, etc.).
5. Delivery time: 7-15 working days after receiving the payment.
6. Port of loading: Shanghai, China.
7. We will provide tracking number and shipping documents after
shipment.
