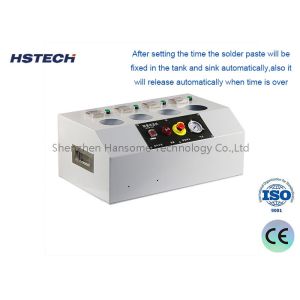

PLC Controlled Solder Paste Aging Machine with Timer FIFO Control
System for Production
Introduction
Automatic solder paste thawing machine, also called solder paste
aging machine, with the timer, the machine can easily achieve the
control of the solder paste temperature warm up time, which can
save much time to record the time of solder paste back to the
ambient temperature after take out off the refrigerated room. It is
a efficiency way to control the temperature of the solder paste,
make sure the activity of the solder paste, ensure the printing
quality, better to control the production plan, improve production
efficiency.
Features
1, Each tank of solder paste placement slot has an independent LED
display time controller. After setting the time the solder paste
will be fixed in the slot and sink automatically,also it will
release automatically when time is over.
2. With FIFO fuction.
3. In the case of out of power accidently,even if not reach setted
time, solder paste bottle will automatically pop up.
4. Equipped with a automatic alarm system,when reach the setting
time, this machine will automatically alarm. Also there is a
emergency stop button for emergency suitation, easy operation and
security.
Specification
| Model | HS-SP-4N |
| Control system | PLC |
| Assemblying parts | Import parts |
| Power | AC220V, 50Hz |
| Air Pressure | 0.4Mpa |
| Placing tank | 4 tanks |
| Machine Demension | 500*300*220mm(W*D*H) |
| Gross Weight | 16KG |
