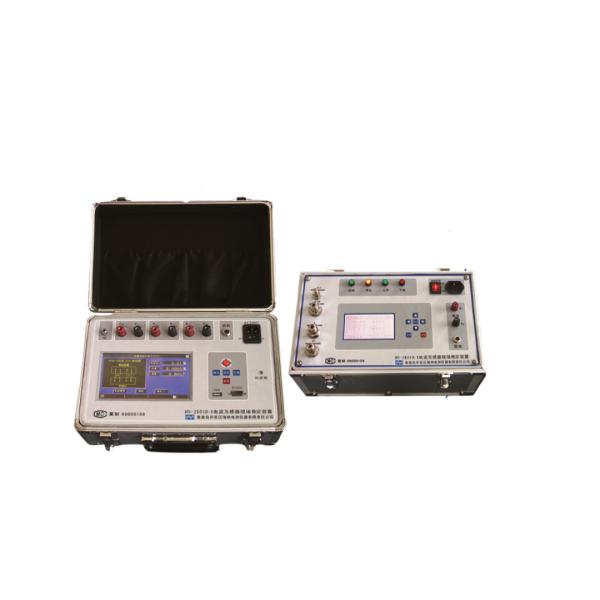

    0.05 Accuracy CT Transformer Testing Automatic Transformer Ratio Tester

    Ask Lasest Price
    Brand Name : GENY
    Model Number : HN-2K01B2
    Certification : ISO, CE
    Price : negotiate rates
    Payment Terms : T/T, L/C, D/P, T/T
    Supply Ability : 5 sets / 1 months
    Delivery Time : 6~8weeks
    • Product Details
    • Company Profile

    0.05 Accuracy CT Transformer Testing Automatic Transformer Ratio Tester

    Automatic Portable CT On-Site Transformer Test Equipment for Testing of CT’s Radio/Angle Error in Accuracy Class 0.05

    Specifications:

    Current Mutual-inductor On-site Calibration Device The product is mainly used to test one grade to 0.2S grade field current.


    Technical parameters
    Accuracy class0.05
    Radio Measurement5 - 25,000A/5A and 5 - 5,000A/1A
    Secondary load5 - 100VA
    Operating range
    Dimension (LxWxH)360x200x430
    Weight8kg
    Operating conditions
    temperature-15°C ~ +45°C
    Relative humidity<85%
    Altitude<2500m
    Power requirementsAC220V±10%
    Frequency50Hz±0.5Hz
    Waveform≤5%

    Description:

    • Equipped with a built-in standard current transformer featuring identical ratios as the CT being tested, boasting an accuracy of 0.05.
    • Features a 7-inch, 800x600 dot matrix color LCD display, capable of concurrently presenting the tested CT's ratio error, phase angle difference, and the secondary loop load on a single screen.
    • Eliminates the necessity for standard CTs, current boosters, load boxes, voltage regulation boxes, and heavy current leads during on-site testing procedures.
    • Automatically conducts error tests at predefined test points, streamlining the testing process.
    • Includes testing capabilities for CT ratio, DC internal resistance, and voltage load box.
    • Offers testing functionalities for CT ratio and internal resistance of secondary windings.
    • Employs intelligent identification and alarm features to detect incorrect wiring, mismatched ratios, polarity issues, and other errors.
    • Clearly indicates test results as either qualified or disqualified, ensuring ease of interpretation.
    • Provides ample on-site data storage capacity, capable of storing up to 1000 groups of test data.
    • Allows for the on-site printing or downloading of test data to a USB drive for convenient record-keeping and analysis.
    • Comes with comprehensive test data management software for organizing and analyzing test results efficiently.
    • Housed in a shock-proof, robust, and high-voltage resistant plastic packing case, guaranteeing the safety of both operators and the testing system.

    Applications:

    • Serving nation-level utility companies, providing essential solutions for accurate measurement and monitoring of energy consumption.
    • Trusted by governmental bureaus of metrology, offering reliable instrumentation and testing equipment to uphold standards and regulations in the field of measurement.
    • Partnering with prominent energy meter manufacturers, delivering advanced testing technologies to ensure the precision and reliability of energy metering devices.

    Primary Competitive Advantages:

    1. High quality product

    2. Convenient, intuitive and direct display of wiring diagram, automatic switch of measurement process.

    3. Fault self-detection and alarm function, over-voltage and over-current protection function.
