| General |
| SDR Platform, Waveform | 9363 or 9361+7Z020, Mobile Network MANET |
| MIMO Technology | Space-time coding,Receive Diversity,TX /RX beamforming |
| Receive Sensitivity | -103dBm@5MHz BW |
| Channel Bandwidth | 1.25/2.5/5/10/20MHz setting; Supports transmission and reception
with different channel bandwidths, achieving mixed broadband and
narrowband |
| Data Rate | 1-70Mbps(10MHz BW) Adaptive, QoS |
| Modulation Mode | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive |
RF Output Power
(Support TPC, transmission power control,1dBm adjustable) | 0.25Watts x2
0.5(1)Watts x2
1Watts x2
2Watts x2
4(5)Watts x2
10(20)Watts x2 |
Single Hop
Communication Distance | Air to G. 3-15KM, 0.25Watts x2; 10-30KM, 0.5Watts x2; 20~50KM,
1Watts x2; 50~100KM, 2Watts x2; 100~150KM, 4Watts x2; 100~200KM,
5Watts x2; 150~300KM, 10Watts x2; 250~500KM, 20Watts x2 |
| Mode | Distributed centerless
Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2
or 3 of Dynamic routing,Multi-hop relay, Star/Line/Network/Hybrid |
| Single Hop Delay | Average 10mS (20MHz BW) |
| Encryption | DES, AES128/256 ,SNOW3G/ZUC optional,Chip /TF card encryption
customized |
| Anti-jamming Mode | Manual spectrum scanning channel selection/Full band enhanced
intelligent frequency selecting(spectrum awareness)/Full band
adaptive frequency hopping FHSS/Roaming mode, Multi-level
anti-interference |
| Local/Remote Management | Operating frequency, channel bandwidth, network ID, transmit power
and other parameter settings, spectrum scanning, real-time display
and statistical records of network topology, link field strength
signal-to-noise ratio, upload and download traffic, node distance,
GPS/BD/GLONASS positioning electronic map,
temperature/voltage/jamming Monitoring, software upgrade. Remote
silence and wake-up optional |
| Others | The startup time is less than 28 seconds, and the network
access/update/switchover time is less than 1 second
There is no limit on the user capacity of a single system (256
nodes or more) and the number of hops in Mesh networks (Data 15+
hops, voice 10+ hops, video 8+ hops).
The total bandwidth loss for three hops and above is less than 70%.
Automatic carrier tracking, adapted to a Doppler frequency
deviation of ±6kHz frequency offset, supports mobile communication
at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per
second) |
| Bands(300M-6GHz/Uper C-X-Ku customizable. Same frequency or
different frequency of TDD, 2T2R at single band) |
| BAND | Frequency range |
| VHF/UHF | 360-450/450-550/570-700/800-950, 225-400/225-678/320-470*MHz |
| L Band | 1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8,
1.0-1.5/1.1-1.6/1.2-1.7/1.3-1.8/1.6-2.3/1.7-2.4/1.8-2.5*GHz |
| S Band | 2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.2-3.4/3.4-3.6/3.6-3.8,
1.9-2.7/2.0-2.7/2.1-2.7/2.7-3.6*GHz |
| C Band | 4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0/6.4-7.2*GHz |
| (Note: RF power, Dimensions, Weight is different) |
| MIIT | 336-344/512-592/566-626/606-678/1420-1520/1430-1444MHz |
| Environmental |
| Operation Temperature | -40ºC ~+80ºC |
| Protection Level | IP66,IP67/IP68 Customized |
| Mechanical |

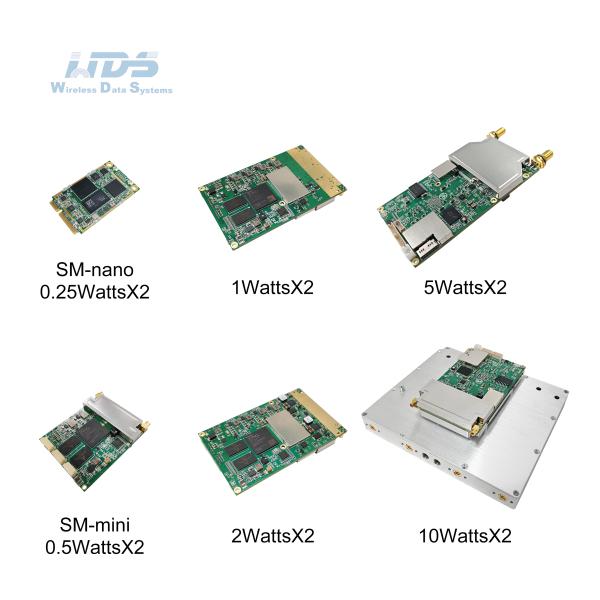

| Size/Weight | 5.1x3.0x0.6cm/11g, 0.25Watts x2 Module, SM-nano
5.8x4.8x1.0cm/27g, 0.5Watts x2 Module, SM-mini
8.7x5.4x1.0cm/40g, 1Watts x2 Module
8.7x5.4x1.0cm/43g, 2Watts x2/4Watts x2 Module
11.5x5.4x1.3cm/56g, 5Watts x2 Module
12.7x11.0x3.4cm/524g, 10(20)Watts x2 Module |
| Installation | 4 Mounting Holes |
| Power |
| Supply Voltage | 3.5-5VDC, 0.25Watts×2, SM-nano
9-32VDC, 0.5Watts×2, SM-mini
9-39VDC, 1Watts×2
12-36VDC, 2Watts×2/4(5)Watts×2
18-32VDC, 10(20)Watts×2 |
| Power consumption | Operation 1-2A/Standby 0.5-1A@3.5-5V, 0.25Watts×2, SM-nano
Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2, SM-mini
Operation 0.5-1A/Standby 0.4-0.6A@12V, 1Watts×2
Operation 1-2A/Standby 0.5-0.7A@12V, 2Watts×2/4(5)Watts×2
Operation 3-6A/Standby 0.7-0.9A@16.8V, 10Wx2
Operation 6-7A/Standby 0.7-0.9A@20V, 20Wx2 |
| Power Selection | Power Supply by Main Cable |
| Interface |
| Basic interface | Network port (IP/WiFi), Serial port
(232/485/422/TTL,Sbus/USB/Bluetooth),Audio port
(MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G
LTE/Satellite/Fibe |
| Push to talk/Auxiliary interface | MIC, SP, PTT, GND/1xRS485,1xUSB2.0 OTG |
| Network Extension | Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
| Video Extension | Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link Status Indicator | Steady red - The network is not connected
Blinking red - Starting/not connected to the network
Steady green - The network is connected
Blinking green - Voice PTT is down |
| RSSI Link Indicator | Steady green - The link quality is excellent
Steady blue - The link quality is good
Steady yellow - The link quality is medium
Steady purple - The link quality is slightly worse
Steady red - The link quality is poor or link is down |
Management Interface/
Control Interface | Web-based network management/GUI, API secondary development
interface/SNMP |
