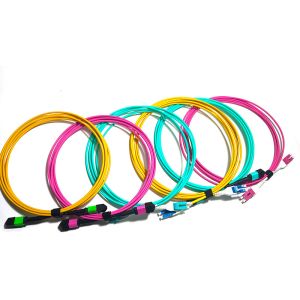

Multimode OM4 Fiber Patch Cables LSZH MPO Trunk Cable 3m 5m Customized

Ask Lasest Price
Brand Name :	Ruiara
Model Number :	MPO/PC- OM4 fiber patch cord
Certification :	SGS/REACH
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union
Supply Ability :	1000PCS + 1 WORK DAYS
Delivery Time :	10-15 DAYS

Add to Cart

Product Details
Company Profile

Multimode OM4 Fiber Patch Cables LSZH MPO Trunk Cable 3m 5m Customized

MPO Fiber Optic Patch Cord OM3 Multi-Mode 12Cores Aqua LSZH Fiber Optic Cable Type A/Type B/Type C

Product Paramenters

Fiber Optic Cable MTP/MPO

Product description:

MPO/MTP cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.

Application of the product:
*Optical Fiber Communication System,

*Optical Fiber Access Network,

*Optical Fiber Data Transmission,

*Optical Fiber CATV, Local Area
*Network (LAN), Testing Equipment

Main technical parameters:

* Insertion loss: ≤0.2dB
* Echo Loss: PC≥40dB,UPC≥50dB,APC≥60dB
* Exchangeability test: ≤0.2dB
* Vibration test: ≤0.1dB (10-60Hz, 1.5mm amplitude)
* Tensile strength test: ≤0.1dB (0-15Hg tension, excluding 0.9mm optical fiber)
* High temperature test: ≤0.2dB (+85 C, lasting 100 hours)
* Low temperature test: ≤0.2dB (-40 C, lasting 100 hours)
* Temperature cycling test:≤0.2dB (-40 ~85 C, after 5 cycles)
* Humidity test: ≤0.2dB (+25℃~+65℃, relative humidity 93%, 100 hours later)

Product Name	Patch Cord MPO/MTP
Fiber Mode	SM/MM/OM3/OM4
Cable Length	Customized
Fiber Count	4/8/12/24 Cores
Cable Diameter	0.9/2.0/3.0 mm
Cable Jacket	PVC/LSZH/OFNP
Polarity Type	Type A/Type B/Type C
Insertion Loss	<0.2db
Return Loss	>60db
Plug in and out	500 times
Storage temperature	-50℃~85℃
Operation temperature	-20℃~70℃

MPO Connector		Standard SM MT Ferrule		Low Loss SM MT Ferrule		Standard MM MT Ferrule	Low Loss MM MT Ferrule
Polish		APC	PC	APC	PC	PC	PC
Insertion Loss(dB)	Typical	0.50	0.50	0.30	0.30	0.50	0.30
	Maximun	0.70	0.70	0.50	0.50	0.70	0.50
Return Loss(dB)		60	45	60	45	20	20
Exchangeability(dB)		≤0.3
Durability(dB)		≤0.2dB (500 Matings,per EIA-455-21A)
Tensile Strength(dB)		≤0.3dB (Max 66N)
Operating temperature(℃)		-20~+60
Storage temperature(℃)		-40~+80
