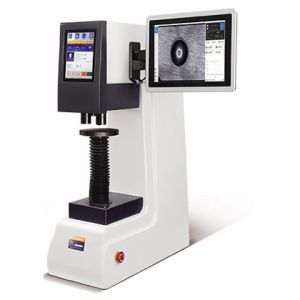

Automatic Visual Digital Brinell Hardness Tester With CCD Image Analysis System
Model: ZVHBS-3000AET
Technical Specifications:
| Model | ZVHBS-3000AET |
| Range of Measurement | 5-650HBW |
| Test Force | 306.25, 612.9, 980.7, 1225.9, 1838.8, 2415.8, (31.25, 62.5, 100, 125, 187.5, 250, |
| Maximum Height of Specimen | 260mm |
| Distance between Indenter Center and Wall | 150mm |
| Objectives | 1X, 2X |
| Loading Method | Electric Loading |
| Turret | Motorized Turret |
| Length Resolution | 0.625um |
| Magnification | 20X, 40X |
| Hardness Resolution | 0.1HBW |
| Camera | 3MP |
| Dwell Time | 0-99 Seconds, adjustable |
| Indentation Measure | Automatically and Manually Measure Indentation Diameter |
| Power Supply | AC 220V/50Hz |
| Dimension | 700*300*930mm |
| Weight | 160kg |
|   |
