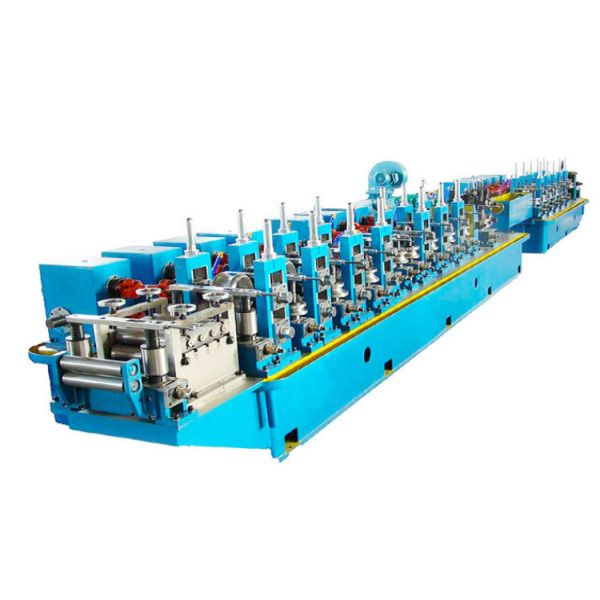

IBC Tube Milling Machine Composition For P-Tube And Round Tube

HWASHI IBC Tube Milling Machine Composition For P-Tube And Round Tube

Description Of The IBC Tube Milling Machine
This machine can produce round tube, square tube, rectangular tube, oval tube, ect. It also can produce half pipe, plum pipe and different shaped tube. The IBC cage frame is composed of P tube, round tube, half round tube or square tube. It will need to use the tube milling machine to produce the tubes into required shape for welding purpose. Normally one machine can be used to produce P tube, round tube or half round tube. Only need to change the moulds.

Main applications including:

• Furniture industry: Steel table tubes, Steel chair tubes, Steel bed tubes, Steel towel racks, etc.
• Construction industry: Steel guardrail, steel door, steel handrail and steel window, etc.
• Industrial pipe production: liquid transportation: milk, water transportation; automobile exhaust pipe; sanitary pipe,chimney etc.

	1. Raw Material Decoiler Double working station Material coil diameter: 1600mm Center height: 1000mm Loading capacity: 2000kg
	2. Strip shearing and welding machine It’s used to cut the tail of former coil and head of next coil and make preparation for welding them together. Hydraulic cutting Max welding thickness: 2mm ​ Welding source: TIG welding
	3. Vertical material accumulator It’s used to store and feed raw materials for forming machine so that the machine can work continuously. Max storage capacity: 150-200m Power of driving motor: 5.5KW Max material feeding speed: 150m/min
	4. Forming and sizing machine It’s the main equipment of the production line. Rollers can make steel strip form into pipes of variety shapes. It consists of forming part , welding part and sizing part.
	5. Cold Cutting Saw With the high precision servo control system and quick reaction of mechanical system, the computer cutting saw has reliable synchronization performance and high precision cutting length. Error rate: ±2mm Power of cutting motor: 11KW AC Power of driving motor: 11KW servo Power of feeding motor: 1.8KW servo
	6. High Frequency Induction Appliances Using the current skin effect and proximity effect of high frequency to make both edges of the material rapidly heated to soldering temperature and then weld them together. Using computer to monitor the process can provide the machine with reliable quality.
	7. Automatic pipe unloading platform Hydraulic cutting It is an unloading platform of pipes cut by computerized saw. After the pipes falling down, workers can quickly check the quality and package them for preparation of transportation.

Technical Data Of Tube Milling Machine

Raw material	Carbon steel coil, galvanized steel coil, other hotorcoldrolledsteelcoil.
Pipe size	Width of rawmaterial	38 -160mm
	Round pipe outsidediameter	Φ12.7 -Φ50.8mm
	Round pipe thickness	0.5 -2.5mm
	Square and rectangularpipesize	10x10 - 40x40mm5x15 -30x50mm
	Square and rectangularpipe thickness	0.5 -2.0mm
High frequency induction welderpower		150Kw
Production speed		20 -120m/min

Application Of Tube Milling Machine
To produce round tube, square tube, rectangular tube, oval tube,etc..

Samples Of Tube Milling Machine

ABOUT US

Hwashi company is a powerhouse in the world of automatic resistance welding equipment and industrial robots. We go beyond the conventional boundaries of welding machine manufacturer. We pride ourselves on being a comprehensive service provider, offering not only top-notch machine but also a dedicated team of specialists committed to providing global customers with reliable and customized solutions to meet their unique application needs.

What sets us apart is our team of over 40 specialists, each with over a decade of industry experience. They are the driving force behind our innovative solutions. With two solid decades in the industry, our welding equipment and robotic arms have proven their mettle across various industrial sectors. From home appliances, kitchen utensils, wires, and cables to lighting fixtures, metal hardware, electronics, and automotive parts. We've got quite the track record.

Our commitment to constant innovation and intensive research and development has earned us over 70 invention patents. Today, our portfolio includes industrial robots, automatic welding lines, spot welding machines, and other resistance welders, all of which have reached more than 80 countries and regions globally. Achieving an annual sales volume exceeding 25 million US dollars, our products' reliable performance has garnered acclaim from renowned international companies.

We take pride in our legacy of trust and excellence, and we're eager to extend our commitment to you. Give us the opportunity to showcase our dedication by providing you with nothing short of the finest solutions and services available.

Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people. We have a professional

team of experts with rich experience in electrical engineering, mechanical design and welding technology.

Since its establishment 22 years ago, hwashi technology has traveled to all corners of the world, participated in more than

100 exhibitions and served more than 8,000 customers

FAQ:

Q1: what is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate

price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with

the suitable technical proposal and price for you.

Q2: what is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period,

there will be extra cost.

Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged

during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he

problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.

Q4: what is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then

we can shape the machine with the seven days after receiving your payment. If you need the Customized

machine, normally it would take about 30-90 days to complete the machine.

Q5: can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos

after the testing. If you need, we can also send the samples back to your country so you can check

the welding quality by yourself before ordering the machine.

Q6: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out

with the suitable technical proposal with the basic machine concept drawings to you. Be size after you

placing the order we will send you the more detailed design drawings of the machine to you for confirmation.

Only after you confirming the drawings then we will start the manufacturing process.

Q7: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance.

(we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that

you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )

Q8: how can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video

and also we will provide you the online guidance and training to your engineer so you can set up the

machine easily. For some complicated machines, we will send engineer to your country to help installation

and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket

cost, and accommodation fee will be covered by the buyer.
