Product Description:

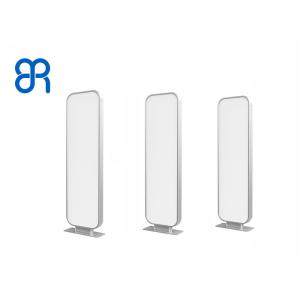

RFID Portal Reader
RFID Portal Reader is an advanced RFID entry recognizer with a
frequency range of UHF902MHz～928MHz, protocol of ISO18000-6C, and
LINUX system. It is highly efficient in recognizing RFID gate cards
and entrance cards with an approximate power consumption of 45W.
This RFID portal reader has a 440mm×210mm×40mm size (without
support), making it a great choice for a variety of applications.
This RFID portal reader is suitable for both indoor and outdoor use
and offers high performance for RFID card reading. It is suitable
for both simple and complex applications, including RFID entry
management, RFID gate management, and RFID entrance management. It
is equipped with advanced technology to ensure reliable and
accurate readings.
This RFID portal reader is easy to install and operate and provides
an intuitive user interface. It is lightweight and portable, and
can be easily installed in any environment. It offers a fast
response time and can be programmed to work with a variety of RFID
cards. It is also compatible with a wide range of RFID card
readers.
It can be widely used in clothing retailers, books and archives
management, personnel access management, fixed assets, intelligent
warehousing management and other fields.
Features:
- Product Name: RFID Portal Reader
- Antenna: Phased Combination Antenna
- Installation mode: Supports Ceiling, Ceiling And Wall Mount
- Power Consumption: Approx. 45W
- weight: Approx. 7.5KG (without Support)
- Frequency: UHF902MHz～928MHz
- Operating frequency 902~928MHz (customizable 865~868MHz)
- Output power 33dbm (adjustable)
- built-in phased combination antenna, can judge the label moving
direction; The top mounting height is 3-5 meters, and the covering
channel width is 2.5 to 3 meters
- Strong multi-label reading ability, the missed read rate is less
than 1% in infrared triggered mode;
- supports offline data cache backup and online automatic upload to
ensure data reliability and security;
- Built-in Linux operating system 4.1.15 and middleware, easy to
customize application development;
- Support ceiling, ceiling and wall mounted installation, fast and
convenient greatly reduce equipment installation costs;
- built-in alarm light and buzzer, support a variety of combination
events sound and light alarm, support online and offline alarm;
- Supports multi-channel GPIO input and output, and integrates
peripherals based on application scenarios.
Technical Parameters:
| Product Attributes | Description |
|---|
| Name | RFID Gate Reader,rfid Acrylic Gate Reader |
| Material | Aluminum +ABS |
| Power Supply | AC 220V±10% 47～63 Hz |
| Weight | Approx. 7.5KG (without Support) |
| Frequency | UHF902MHz～928MHz |
| Antenna | Phased Combination Antenna |
| Protocol | ISO18000-6C |
| Interface | RS-232(DB9),RJ45 |
| Installation mode | Supports Ceiling, Ceiling And Wall Mount |
| Storage Temperature | -30℃～70℃ |
Applications:
RFID Portal Reader, BRC-05A Pro, is manufactured in Shenzhen, China. It is available in 1pcs with price 980. It comes with Standard Export Carton, Foam and Protective Film, and is delivered in 7 working days. It has Ceiling, Ceiling And Wall Mount installation mode, and is made of Aluminum +ABS. It has a Phased Combination Antenna and operating temperature range of -20℃~+60℃, with a weight of Approx. 7.5KG (without Support). This high-end RFID Portal Reader is a great choice for a variety
of applications, such as transportation, logistics, access control,
and more. With its advanced technology and reliable performance, it
can identify objects quickly and accurately.
Support and Services:
RFID Portal Reader provides technical support and services to
ensure that customers are satisfied with their purchase. Our
technical support and services include:
- Online support – Our technical support team is available to answer
any questions you may have about your RFID Portal Reader.
- Troubleshooting – We can provide help to diagnose any problems you
may have with your RFID Portal Reader.
- Software updates – We offer software updates to ensure your device
is running the latest version.
- Hardware repairs – If your device needs any repairs, we can provide
them.
- Replacement parts – If any parts of your RFID Portal Reader need to
be replaced, we can provide the necessary parts.
Packing and Shipping:
RFID Portal Reader Packaging and Shipping
The RFID Portal Reader is securely packaged in a sturdy box with
foam inserts to protect the product during transport. It is shipped
with the appropriate adapters, batteries, and cables. A user manual
is included in the box to guide the user in setting up the product.
The package is shipped using a trusted carrier with a tracking
number. The customer is sent the tracking number to follow the
package’s progress. The package is delivered to the customer’s
address in a timely manner.
FAQ:
- Q: What is the Brand Name of BRC-05A Pro RFID Portal Reader?
- A: The Brand Name of BRC-05A Pro RFID Portal Reader is "Bowei".
- Q: What is the Model Number of this product?
- A: The Model Number of this product is "BRC-05A Pro".
- Q: Where is this product made?
- A: This product is made in Shenzhen.
- Q: How many pieces can I order at minimum?
- A: The minimum order quantity is 1 piece.
- Q: How much does it cost?
- A: The price of BRC-05A Pro RFID Portal Reader is 980 USD.
