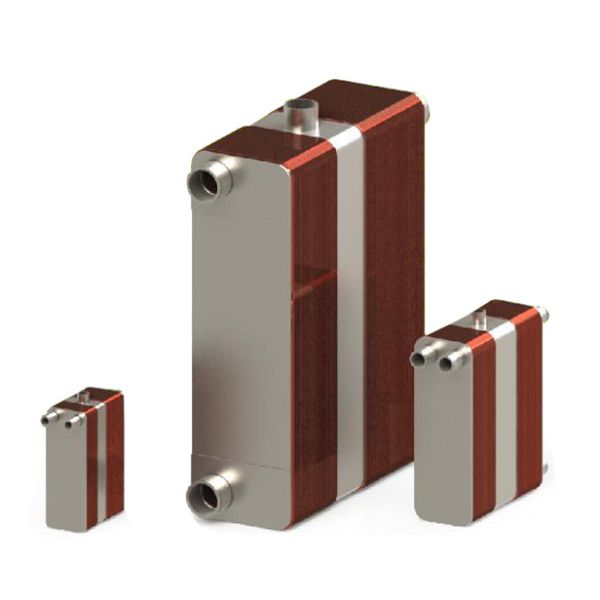

Custom High Pressure Refrigerant Copper Evaporator Blower Air Dryer
Filter Steam Heat Exchanger
Product description
Plate heat exchangers have been widely used in many industries, and
are now widely used in many industries such as power engineering,
shipping, metallurgy, petroleum, chemical industry, food and light
industry. So what are the requirements for temperature and pressure
of plate heat exchangers?
Plate heat exchanger surface compact structure, small gap, so the
heat transfer area per unit volume increases, its installation area
is about 1/2 to 1/3 of the shell type, generally can save the floor
area and construction costs, each shell volume is 1m3, the heat
transfer area is about 80m2, in addition, plate heat exchanger easy
to increase or decrease the heat exchange area, For shell and tube
heat exchangers, when the liquid processing capacity needs to be
increased, the heat transfer area of the original heat exchanger is
almost impossible to increase, but the heat transfer area of the
plate heat exchanger is easy to increase, thereby increasing the
processing capacity.
Plate heat exchangers only the shell plate of the heat transfer
plate is exposed to the atmosphere, so the heat loss is negligible
and no insulation measures are required. One of its features in
operation and maintenance is that it is more convenient to install
and disassemble, and even need not be completely disassembled, and
only the compression bolt can be loosened to remove the plate for
cleaning, replacing the washer, and even replacing the plate. This
is particularly important for materials where the heat transfer
medium is prone to deposition. Allowable temperature and pressure:
It relies on the gasket between each two plates to prevent material
leakage, so the total length of its sealing perimeter is long, to
prevent gasket leakage is an important link.
The temperature, pressure and chemical stability that the washer
can withstand are also often the temperature and pressure of its
use and the range of materials allowed. In addition, because the
gap between the heat transfer surface is small, the heat transfer
surface has a convex, so the pressure loss is larger than the
traditional smooth, in addition, the plate heat exchanger is under
lower working pressure.
Compared with traditional heat exchange equipment, plate heat
exchangers not only have advantages in appearance, but also have
great advantages in functional use: that is, the heat can be used
twice, the resources can be fully utilized, and the role of energy
saving can be achieved. The previous tubular plate intersection
principle is the same, but the heat exchange effect is definitely
not as good as the plate heat exchanger effect.
| Model | A | B | C | D | E |
| AL14 | 71 | 206 | 42 | 172 | 44 |
| AL26 | 111 | 310 | 50 | 250 | 50-100 |
| AL95 | 191 | 616 | 92 | 519 | 85-276 |
ModelBL1
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
Certified by ISO9001, CE, UL, WRAS, RoHS, CCS etc.
| Material | |
| Cover plates material | Stainless Steel |
| Flow plates | Stainless Steel |
| Connections | Stainless Steel |
| Brazing material | Copper / Ni / Stainless |
