    Hydraulic Winch Drum With Rope Groove LBS Sleeves 20KN 30KN 50KN

    Ask Lasest Price
    Brand Name : LBS
    Model Number : LBSS-DN15-L360
    Price : Depend the parameter and quatity
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 Pieces/Sets Per Month
    Delivery Time : 10 to 20 work days, depends on order amount and specification
    Certification : DNV, ABS, GL, LR, BV, CCS, RINA, NK,
    • Product Details
    • Company Profile

    Hydraulic Winch Drum With Rope Groove LBS Sleeves 20KN 30KN 50KN

    20KN 30KN 50KN Hydraulic Winch Drum With Rope Groove LBS Sleeves



    Product material:
    Polymer nylon, carbon steel, alloy steel, aluminum, all kinds of high-strength steel Q390 Q420 Q460 Q690 A709Gr50 S420N S460N SM490B DH32 AH36 DH36 NM500, etc
    Supply standard: GB, American Standard AISI, ASME, ASTM, Japanese standard JIS / German standard DIN, standard NF, British standard BS, European standard EN, etc.
    Shipboard has been certified: DNV, ABS, GL, LR, BV, CCS, RINA, NK, KR, etc.

    Processing equipment: CNC machining center

    LBS Sleeve working Temperature: -25~+40 Centigrad

    Product Overview:

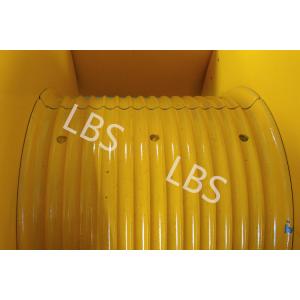

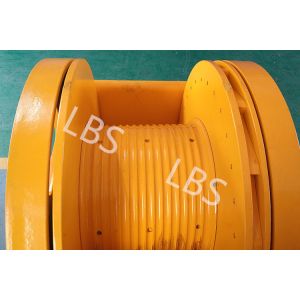

    Winch grooves sleeves:
    LBS groove sleeves can be placed over smooth and ungrooved drums – suitable for modification or replacement of drum. It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly.

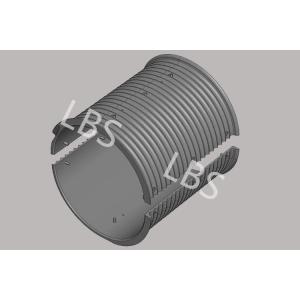

    Split-sleeve system structure:
    Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum,The split sleeve is composed of spiral groove and parallel groove, the groove design conforms to the specified wire rope structure, diameter and length.Compared with cordless groove (smooth) drum and helical groove drum.
    LBS grooved drum has obvious advantages in multilayer spooling. It can be widely used in the heavy lifting and compact working conditions.


    Product advantage:
    The manner in which wire rope is installed or wound on a drum will, to a large measure, determine the service life of that rope. Improperly wound ropes will cause undue crushing of the rope, doglegs, kinks, excessive abrasion and cutting of the individual wires. Bad spooling also causes uneven application of force and motion. This results in fast fatiguing of the line from the end attachment to the drum.

    advantage:

    1. Each one circle layer of the grooved drum has two parallel groove section and two groove section

    2. Make wire rope spooling more smooth and uniform distribution of load between each layer

    3. Prevent cross &mess in rope spooling working happening

    4. Lower the rope damage, extend the rope life


    Technical parameters:

    No:Wire diameter(mm):

    Rotation
    direction

    Grooved drum
    diameter(mm)

    Width between

    the flanges(mm)

    LayersRope capacity(m)

    1

    5

    Lefthand

    80

    150

    3

    18

    2

    12

    Lefthand

    150

    280

    2

    19

    3

    24

    Righthand

    300

    300

    4

    43

    4

    32

    Lefthand

    500

    460

    6

    127

    5

    42

    Righthand

    800

    750

    8

    360

    6

    58

    Righthand

    1100

    1000

    8

    1800




    Product Tags:

    lebus groove



    drum sleeve


    Quality Hydraulic Winch Drum With Rope Groove LBS Sleeves 20KN 30KN 50KN for sale
