Product technical parameter:(can be design as customer require
base)
| Model | Layer plly force (T) | Rope speed | Drum bottom diameter | Difference of working pressures(Mpa) | Rope capaticty(mm) | Diameter of steel cable(mm) | Model of power |
| LBSOP1-10 | 30 | 0-35 | 305 | 15.9 | 65 | 15 | XH2-420 D51 |
| LBSOP1-20 | 50 | 0-40 | 380 | 16.3 | 70 | 20 | XH3-900 D240 101 |
| LBSOP1-30 | 80 | 0-40 | 470 | 15.6 | 100 | 24 | XH5-1800 D240101 |
| LBSOP1-40 | 100 | 0-40 | 470 | 16 | 90 | 28 | XH6-2000 D240 101 |
| LBS0P1-50 | 120 | 0-30 | 600 | 17.3 | 175 | 30 | XH6-3000 D240101 |
| LBSOP1-60 | 150 | 0-30 | 640 | 17.8 | 143 | 38 | XH7-4300 D240101 |
| LBS OP1-70 | 200 | 0-25 | 660 | 17.8 | 150 | 40 | XH8-900d240101 |
Design feature:

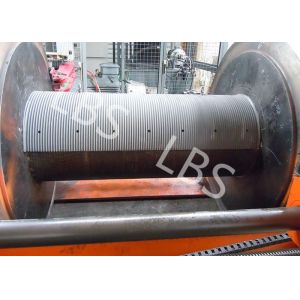

LBS groove design can make exactly caculate the rope speed and let
the rope fall into the regular groove as we designed ,even the rope
load force distributed that design can extend the rope and drum
about 300%-500% life.
Product structure:
1. The winches with spooling device can realize automatic rope
arrangement.
2. The winch spooling device (rope arranging device) adopts the
principle of double screw to drive the rope wheel to move back and
forth,
3. The utility model is composed of six parts: power output part,
gearbox, clutch, groove sleeve part, rope supporting part and base.
4. Automatic rope-arrangement transmission principle: winch drum -
transmission - groove sleeve rotation - rope wheel reciprocating
movement.
5. Do not need to change any part of the winch during installation,
just installed in the outer gear winch motor side
Spooling Drive principle:
Winch drum - gear box - screw sleeve rotation - rope wheel
reciprocating movement.
Product application:
The winch is widely used in boat, port, workshop, warehouse,
construction and many kinds producing-line, so is necessary
equipment for lifting goods, raising labor efficiency, improving
working conditions.
Company profile:
Our factory mainly in the service of hoisting machinery, Marine
machinery, petroleum machinery, hydraulic machinery, engineering
machinery and other industries, the main products are oil drilling
rig, workover rig, drifting machine, trailermounted pumping unit
winch (The main drum is used LBS grooved drum) and oil equipment
accessories.
Product advantage:
1. Top quality with competitive price.
2. Compact structure and reasonable design
3. Safe and reliable function.
4. Highly efficient, constant operating torque motor.
5. Smooth running over the entire speed range.
6. Mechanical transmission device, easy to use, safe and reliable.
