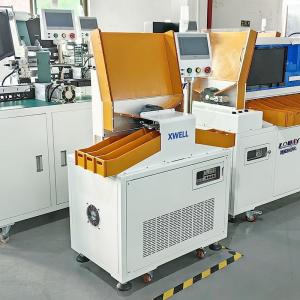

5 Channels 18650 Battery Cell Sorter Automating Sorting Machine
26650 Automating Sorting Machine
Cell Soritng Machine Description
The battery sorter is mainly used to support the process of sorting and matching
cylindrical cores.
On the basis of conventional capacity parameter sorting, accurate
AC internal resistance measurement, open-circuit voltage
measurement and sorting and matching of the core are carried out.
The equipment consists of man-machine interface, charging of core
hopper, automatic measurement of internal resistance of core
voltage, automatic grading, feeding trough and so on. The maximum
one-time grading
Cell Sorting Machine Working Principle
The device measures the voltage resistance of the battery through a
voltage internal resistance tester.
The voltage internal resistance parameters of four gears are set by
man-machine interface. The voltage internal resistance of the core
is tested by PLC and judged by the parameters. The battery grade is
obtained. The sorting cylinder is controlled by PLC to send the
battery to the corresponding receiving gears.
Cell Sroting Machine Specification
| Voltage Supply | 220V±10%/50Hz±10% |
| Power | <1000W |
| Display Screen | Computer software user interface |
| Battery Types | Cylindrical Cell (32140, 33138, 33140 ) |
| Receiving Channel | 5 channels |
| Test Parameter | AC internal resistance, DC voltage |
| Internal Resistance Test | Test range: 0-80mΩ Accuracy: +/- 0.5% rdg Display resolution: 0.01 milliohm |
| Voltage Test | Test range: 0-8V Accuracy:±0.1% rdg Resolution: 0.01mV |
| Sorting Speed | 3000 pcs/h |
| Weight | <200KG |
| Dimension | 1120mm(L)*880mm(W)*1250mm(H) |
| Tester | HK3561 |
| Productivity | 3000 pcs/h |
Cell Sorting Machine Details
