Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia

    Buy cheap Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia from wholesalers

    Buy cheap Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia from wholesalers
    • Buy cheap Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia from wholesalers

    Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia

    Ask Lasest Price
    Brand Name : RanCheng
    Model Number : RCJ150RC/RCJ180RC/RCJ300RC
    Certification : CE, ISO 9001:2000
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100sets per Month
    Delivery Time : 10-15 working days
    • Product Details
    • Company Profile

    Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia

    150 / 200 / 300m Drilling Depth 110 - 250mm Drilling Dia RC Drilling Rig

    Product Description

    RCJ150RC / RCJ200RC / RCJ300RC hydraulic air reverse circulation down - the - hole hammer drilling rigs stand out among many drilling rigs with their excellent performance and unique design.

    First of all, this drill is equipped with a dual - channel power head, which allows it to provide strong torque and pulling force while also having excellent accident handling capabilities. Whether it encounters hard strata or complex geological conditions, it can respond quickly to ensure the smooth progress of drilling work.

    Secondly, the drilling rig adopts the patented design of the telescopic system, making the output shaft more flexible and reliable. This design not only effectively protects drilling tools, but also improves the service life and stability of the drilling rig.

    In addition, the drilling rig is equipped with a hydraulic clamping and disassembly system to realize automatic tightening and loosening of drill pipes and tools. This not only greatly reduces the auxiliary time and labor intensity during the drilling process, but also improves work efficiency and safety.

    Finally, the dual - motor - driven drill features variable speed and a wide RPM range, making it suitable for a variety of drilling methods, including pneumatic down - the - hole hammer drilling and alloy drilling. Whether high - speed drilling or low - speed drilling is required, it can easily cope with different drilling needs.

    To sum up, RCJ150RC / RCJ200RC / RCJ300RC hydraulic air reverse circulation down - the - hole hammer drilling rigs have become leaders in the drilling field with their excellent performance, unique design and wide applicability.

    Product Specifications

    Rig modelRCJ150RCRCJ200RCRCJ300RC
    Borehole depth (m)150200300
    Borehole diameter (mm)110-150110-150150-250
    Drill head rotary speed (RPM)21-15843-15048-190
    The output torque of the drive powerhead (NM)780080008500
    Drill head feeding stroke(mm)350038003500
    Drill head max lifting force (KN)6585150
    Drill head max feeding force (KN)4555100
    Hoist max lifting capacity (KN)111120
    Engine power (KW)Cummins 45+18.5Cummins 45+22

    Cummins
    125

    Drill machine Weight(Kg)680080009800
    Overall Dimension(L*W*H)(mm)6500*2200*24006300*2000*25006800*2250*3100

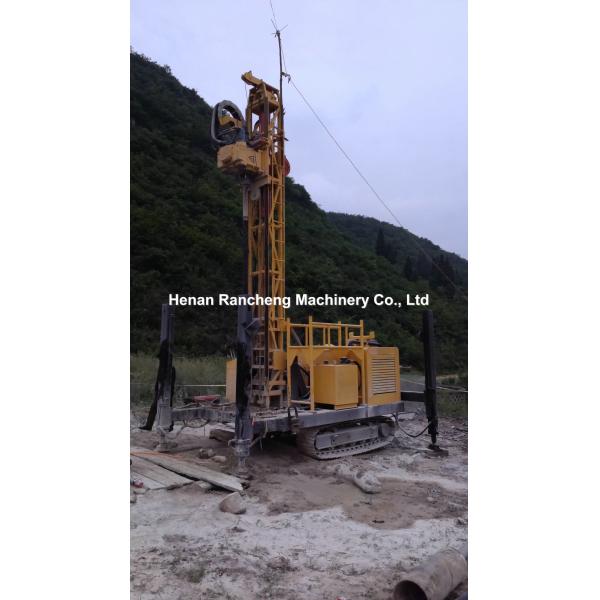

    Product Image


























    Quality Crawler Mounted RC Drilling Rig 150m / 200m / 300m Depth 110 - 250mm Drilling Dia for sale
