EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734

    Buy cheap EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 from wholesalers

    Buy cheap EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 from wholesalers
    • Buy cheap EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 from wholesalers
    • Buy cheap EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734 from wholesalers

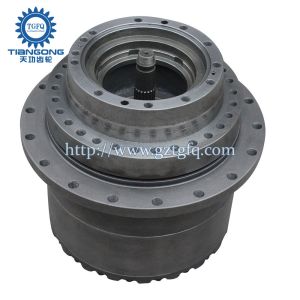

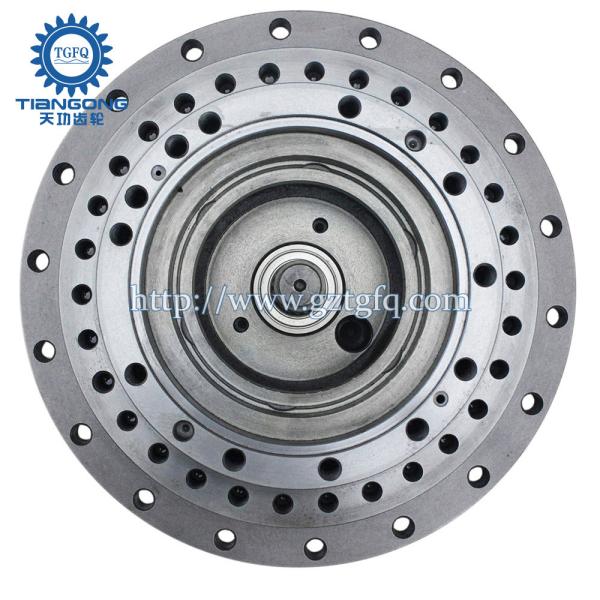

    EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734

    Ask Lasest Price
    Brand Name : TGFQ
    Model Number : EC240 Old Type
    Price : 500.00-4000.00USD
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 1000 pcs / month
    Delivery Time : 1-3days
    • Product Details
    • Company Profile

    EC240 Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734

    EC240 Old Type Vol-vo Final Drive Assembly VOE 14528735 VOE 14528734


    EC240 Old Type Final Drive Assembly For Apply To Vol-vo Reduction Gearbox


    Product parameter:

    Product name:Travel Gearbox
    Place of Origin:China(Mainland)
    Model:EC240 Old Type
    Part Number:SA7117-34050 / VOE14528735 / VOE14528734
    Weight:278 KG
    Package Size:54*54*57 CM
    Delivery time:Within 1-3 days after receiving the payment
    Means of Transport:By Sea, By Air or By Express

    S/N :10001--12640(12641-15000)8277649,8277650,8277651,8279629,8279630,8279631

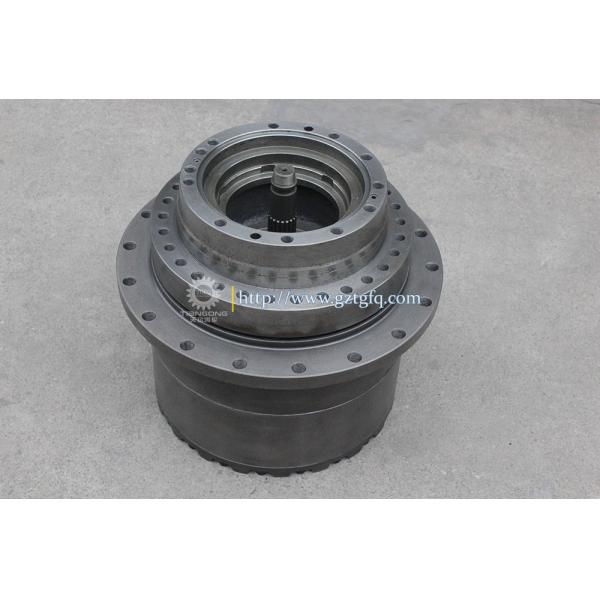

    EC240 Old Type Final Drive Photo:


    Drawing:

    Pos.Part NoQtyParts name
     SA7117-34050[1]Travel Gearbox
    1SA7117-34100[1]Housing
    2SA7117-34110[2]Bearing
    3SA7117-34120[1]Ring gear
    4SA9016-21818[20]Hex. socket screw
    5SA7117-34130[1]Seal
    6SA9415-43042[3]Plug
    7SA7117-34190[1]Retainer
    8VOE9011-11206[12]Screw
    9SA7117-34200[1]Planet carrier
    10SA7117-34210[1]Carrier
    11SA7117-34220[4]Planetary gear
    12SA7117-34230[8]Needle bearing
    13SA7117-34240[8]Washer
    14SA7117-34250[4]Pin
    15VOE13951991[4]Spring pin
    16SA7117-34260[1]Carrier
    17SA7117-34270[1]Carrier
    18SA1036-00310[1]Thrust ring
    19SA7117-34280[1]Gear
    20SA1036-00300[1]Ring
    21SA7117-34290[1]Retaining ring
    22SA7117-34300[3]Planetary gear
    23SA7117-34310[3]Needle bearing
    24VOE14556491[6]Washer
    25SA7117-34330[3]Pin
    26SA9325-06012[3]Spring pin
    27SA7117-34340[1]Planet carrier
    28SA7117-34350[1]Planet carrier
    29SA7117-34370[3]Pin
    30SA9325-06012[3]Spring pin
    31SA7117-34360[1]Gear
    32SA7117-34440[1]Retaining ring
    33SA7117-34420[3]Planetary gear
    34SA7117-34380[3]Needle bearing
    35SA7117-34390[3]Washer
    36SA7117-34400[3]Washer
    37SA9541-01034[3]Retaining ring
    38SA1036-00290[2]Thrust ring
    39SA7117-34430[1]Gear
    40SA7117-34410[1]Cover
    41VOE9213-10000[16]Spring Washer
    42VOE993025[16]Hexagon screw
    43SA7117-34140[1]Shim
    44SA7117-34150[1]Shim
    45SA7117-34160[1]Shim
    46SA7117-34170[1]Shim
    47SA1036-00450[1]Shim
    48SA1036-00460[1]Shim




    OUR STOCK

    We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
    It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage

    FAQ:
    Q: What can you do?
    A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts.


    Q: How long is the warranty period?
    A: Within 3/6 months, we will provide you with maintenance spare parts within the warranty period free of charge.



    Q: Can I order one of our samples for testing first?
    A: Of course!


    Q: How do I order?
    A: You need to tell us the model and quantity you are interested in, and then we will issue a proforma invoice for you. The goods will be prepared after receiving the payment. The preparation time depends on the content of the order


    Q: Do you have a factory?
    A: Yes, we have our own factory and have 22 years of production experience in the excavated gear industry.
