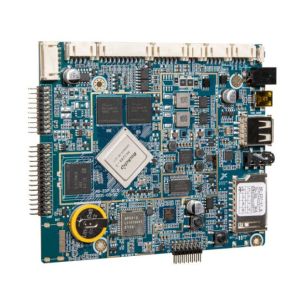

RK3288 4K Android Embedded Board Quad Core Android system board for
LCD Displayer
1. Support 7-inch to 84-inch various LVDS interface displays
(point-to-point full HD display 1920*1080).
2. Support EDP interface display screen.
3. Multiple interactive mode interfaces: capacitive touch, infrared
touch, infrared remote control, USB keyboard and mouse, multi-point
optical touch.
4. Multiple network interfaces: Ethernet, wireless WIFI, Bluetooth.
5. Multi-channel USB interface, serial port.
6. Support 4K video playback and HDMI 2.0 high-definition output.
7. Strong anti-electromagnetic interference and electromagnetic
compatibility.
Basic hardware specifications:
| CPU | Rockchip RK3288 Quad-core Cortex-A17 Quad-core GPU Mali-T764 |
| Main frequency | 1.8GHz |
| RAM | LPDDR3 2G/4G Optional |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G Optional |
Display interface
| LVDS interface (single-channel, 6-bit dual-channel, 8-bit
dual-channel). Support maximum resolution 1920x1080, support 7"-84"
display |
| EDP interface |
| Screen voltage | Support 3.3V/5V/12V optional |
| Touch screen | Provide I2C interface (can support multi-point resistive touch,
multi-point capacitive touch). Support USB multi-point infrared touch, multi-point acoustic wave
touch, multi-point optical touch. |
The internet
| With RJ45 interface, support 10/100 Ethernet. |
| Equipped with Wifi&BT module, supporting Wi-Fi 802.11b/g/n
protocol. Support BT4.0 |
| Image rotation | Support 0-degree, 90-degree, 180-degree, 270-degree manual/auto
rotation, support gravity sensor function |
| Real Time Clock | Built-in (optional external) real-time clock power supply battery |
Interface device
| Support MIPI interface camera, up to 500W pixels |
| 3 USB HOST, 1 USB OTG (support usb camera@500W usb printer, U disk,
mouse, keyboard, standard usb peripherals) |
| 3 groups of serial ports. Support external serial port device
modules (3G module, NFC module, printer, card reader, etc.) |
| SD card, maximum support 32GB |
| Class D power amplifier: 3W*2 8 ohms, support microphone |
| HDMI 2.0 output |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Support H.264, MPEG2, VP6, VP8, MVC and other video formats
2160P@24FPS decoding. YouTube and other online videos, up to 4K,
HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG and other image format browsing and support
rotation/slide show/picture zoom function |
| Power Adapter | Input: AC100-240V.50-60HZ, output: DC12V 3A |
Basic software specifications:
| Operating system | Android 8.0 and above |
| Basic software functions | Web browsing, web chat, email, e-book, resource manager |
| Sound effect mode | Clock, alarm clock, calculator, recording |
| Language support | multi-lingual |
| Recording | Support MP3, WMA format recording |
| Tool | Calendar |
| Alarm Clock |
| Calculator |
| note |
| Weather + clock |
| recording |
| Word processing | EPUB, WORD, EXCEL, POWERPOINT, PDF, TXT |
| Ebook | PDF/TXT/CHM/DOC/EXCEL/EPUB/RTF/FB2 |
| Schedule | calendar |
| Input | Standard Andriod keyboard, optional third-party input method
(Chinese, Korean, Japanese, etc.) |
| Network | Browser -ChromeLite |
| GOOGLE Market |
| Email |
| Gmail |
| Google talk |
| System Management | APK installer |
| The original ecological Android system, open root permissions, can
be customized product development |
| Real-time remote monitoring, self-recovery from system crashes,
7*24 hours unattended |
| System setting |
| Google Maps |
| Global time |
| Support OTA remote upgrade |
