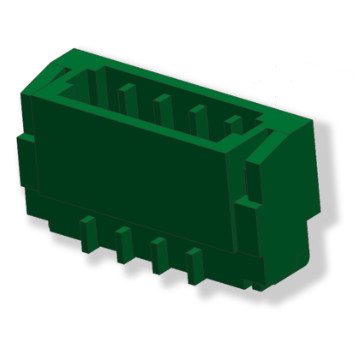

Electronic Smt Wire To Board Connector WTB 0.8mm Pitch Height 2.8mm

0.8mm Pitch Wafer Wire To Board WTB Connector Vertical Smt Height 2.8mm

Note:
1.Material:
1.1 Housing:High temperature thermoplastic,UL94v-0
1.2 Contact:copper alloy;
Gold/Tin plated over Ni
1.3 Solder tab:copper alloyTin plated over Ni
2.Specification:
2.1 Current rating:0.2A DC(AWG#36)
0.5A DC(AWG#32)
2.2 Voltage rating:30V AC/DC
2.3 Dielectric withstanding woltage:200V(AC)for 1 min.
2.4 Contact resistance:20mΩ Max.
2.5 Insulation resistance:100MΩ min.
2.6 Temperature range:-25°C~85°C
