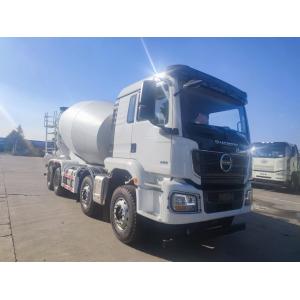

    8x4 Concrete Conveyor Truck SHACMAN H3000 Concrete Transit Mixer 375HP White

    Ask Lasest Price
    Brand Name : SHACMAN
    Model Number : H3000
    Certification : ISO 9001/CCC
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    8x4 Concrete Conveyor Truck SHACMAN H3000 Concrete Transit Mixer 375HP White

    SHACMAN H3000 8x4 Mixer Truck 375HP


    Detailed Product Description
    Model: SX5318GJBMT306
    Drive type: 8x4
    Weight: Gross Vehicle Weight≤60
    Engine Brand: WEICHAI
    Engine Model:WP12.375E53+PTO
    Engine Power/(kw/HP): 247kw / 375Hp
    Gear box Brand: FAST
    Gear box Model:10JSD180


    Concrete Mixer Truck Parameters

    ModelSX5318GJBMT306
    Drive type8x4
    WeightGross Vehicle Weight≤60
    DimensionsWheelbase/(mm)1800+3575+1400
    PerformanceMaximum speed/(km/h)50~65/90
    Ground clearance>314
    EngineBrandWEICHAI
    ModelWP12.375E53+PTO
    Power/(kw/HP)247kw / 375Hp
    Maximum torque / (N.M)/rpm1550 N·M
    Displacement/(L)9.726 L
    Emission standardEuro II
    Gear boxBrandFAST
    Model10JSD180
    ClutchTypeφ430 Diaphragm spring clutch
    CoolingTypeDomestic heat sink
    Air inletTypeOrdinary air filter
    BrakesTypeDrum brake
    Service brakeDouble circuit air brake
    Park brakeRear wheel spring brake
    Auxiliary brakeWEVB engine exhaust brake
    SteeringTypeZF8098 technology, circulating ball steering machine
    ChassisTypeParallel trapezoidal frame with variable section
    Dimensions/(mm)850×300(8+7)
    SuspensionFrontMulti-layer plate spring 4 main plates + 4 U-shaped bolts
    RearMulti-layer plate spring 4 main plates + 4 U-shaped bolts
    AxlesBrandHANDE
    Front axle9.5T front axle MAN technology
    Rear axle16T MAN dual stage: 5.262
    TiresType12.00R20
    Fuel tankTank capacity/(L)400L Aluminum tank
    ElectricsType24V
    Battery165Ah Maintenance-free battery
    CabTypeSHACMAN H3000 Medium-length flat cab
    EquipmentHydraulic main seat, four-point hydraulic suspension cab, manual window crank, ordinary rear-view mirror, H3000 cooling system, square muffler, 165Ah maintenance-free battery, SHACMAN logo, full English logo.

    Overview

    1. Engine: The truck is equipped with a powerful 375 horsepower (HP) engine that provides plenty of power and torque to carry heavy loads and operate concrete mixing equipment.
    2. Chassis: The truck has an 8x4 chassis configuration, indicating that it has eight wheels, four of which are driven. This configuration provides enhanced traction and load carrying capacity, making it suitable for the required tasks.
    3. Mixing drum: The mixing drum is a key component of the truck where raw materials such as cement, water and aggregate are mixed to create concrete. Rollers are usually constructed of durable materials to withstand the demands of concrete mixing.

    Detailed Image


    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start from 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are total about 11-50 people in our office.

    2. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment.

    3. What can you buy from us?
    Dump truck, track truck, lorry truck, Van truck, Mixer truck.

    4. What services can we provide?
    Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, DDU;
    Accepted Payment Currency: USD, EUR, CNY;
    Accepted Payment Type: T/T, L/C, D/P D/A
    Language Spoken: English, French
