P1.25 P1.53 P1.8 P2 P2.5 Indoor Fixed HD full color front maintenance indoor led display screen LED Panel Display Video

Product Description

Features

1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience. 2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows 3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive. 4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble. 5. Easy Setup: Back modules are made easier for connection. 6. Totally front service design. Saving space and maintenance cost.

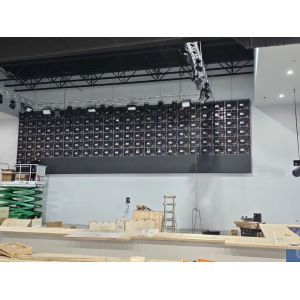

Product Case

Whole Screen Installation Process

Front And Rear Disassembly

Product Paramenters

Parameter
Product Name	P1.25	P1.53	P1.86	P2
Pixel composition	1R1G1B	1R1G1B	1R1G1B	1R1G1B
LED encapsulation	SMD1010	SMD1212	SMD1515	SMD1515
Density of pixel/(dots/m2)	640000 dot/㎡	422753 dot/㎡	289050 dot/㎡	250000 dot/㎡
Brightness	500-1200nits	500-1200nits	500-1200nits	500-1200nits
Size of module (mm*mm)	320mm*160mm	320mm*160mm	320mm*160mm	320mm*160mm
Cabinet size	640mm*480mm	640mm*480mm	640mm*480mm	640mm*480mm
Drive Method	1/64Scan	1/52Scan	1/43Scan	1/40Scan
Best viewing angle (Horizontal/Vertical)	H: 160°; V:160°	H: 160°; V:160°	H: 160°; V:160°	H: 160°; V:160°
Refresh rate	1920-3840HZ	1920-3840HZ	1920-3840HZ	1920-3840HZ
Blind Spot Rate	<0.000001	<0.000001	<0.000001	<0.000001
Grey scale	14 bits per color	14 bits per color	14 bits per color	14 bits per color
