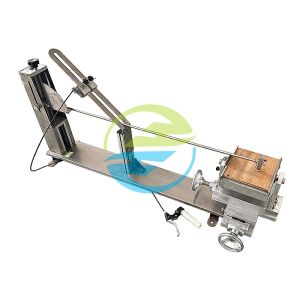

IEC 60884-1 Impact Testing Equipment Pendulum Hammer Test Apparatus
With Multi Height Of Fall
Product presentation:
This testing device conforms to many standard requirements like
IEC60068-2-75 and IEC60884-1fig22-26. It is used for the mechanical
strength test of households and similar use of plug sockets,
electrical accessories like switches and shrouds, etc.
Standard of Impact Testing Equipment:
IEC 60884-1: 2022 Plugs and socket-outlets for household and
similar purposes -Part 1: General requirements clause 24.2;
IEC 60068-2-75 test EHA
Application of Pendulum Hammer Test Apparatus:
The equipment is widely used in plastic, film, paper, composite
film, metal foil, nylon, hard rubber, glass fiber reinforced
plastic, electrical insulation material, and other non-metallic
material impact resistance tests.
Test sample of Pendulum Hammer Test Apparatus:
plugs and socket outlets, surface-type mounting boxes, screw
glands, gland covers, switches, and other electrical accessories.
Feature of Impact Testing Equipment:
This device is for the energy impact test (the energy is under 2J).
The mounting bracket can be adjusted before and after, and the
impact angle can be adjusted.
Parameters:
1． Striking element (Equivalent mass):150±1g;
2． Mounting bracket:weight:10±1Kg;
3．Bracket rotation angle:±60°,can be rotated ±90°;
4．Pendulum length:1000±1mm,weight:100±1g,external diameter:9
mm,thickness:0.5 mm;
5． Pendulum impact height: 75 mm,100 mm, 150mm,200
mm,250mm,300mm,400mm,500mm Scale display;
6． Correspondence between drop height and energy
Table (Low energy)----Relationship between impact energy and dropping height
Nominal drop height, mm ±1% | Impact Energy, J |
| 75 | 0.15 |
| 100 | 0.20 |
| 150 | 0.30 |
| 200 | 0.40 |
| 250 | 0.50 |
