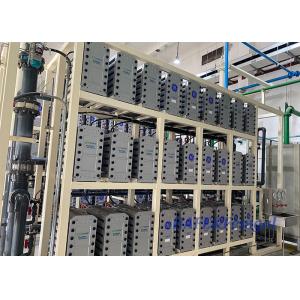

    Electrodeionization EDI Modules EDI Stacks for Ultrapure and High Purity Water Systems

    Ask Lasest Price
    Brand Name : VEOLIA
    Model Number : E-Cell MK-3
    Certification : CE
    Price : Negotiable
    Supply Ability : 60000 Unit/Units per Month
    Delivery Time : 5- 8 work days
    • Product Details
    • Company Profile

    Electrodeionization EDI Modules EDI Stacks for Ultrapure and High Purity Water Systems

    Electrodeionization EDI Modules EDI Stacks for Ultrapure and High Purity Water Systems


    Application of EDI module E-CELL-3X and MK-3 in high purity water production equipment:


    1. It provides ultra pure water for power, semiconductor, chemical, metallurgical and general industries
    2. Continuous production of ultra pure water with water quality of mixed bed
    3. There is no need to regenerate the mixed bed resin in the module
    4. There is no water leakage
    5. There is no need for brine injection and concentrated water circulation, which simplifies the design


    ModelE-CELL-3XMK-3
    SizeShipping weight135kg92kg
    WeightDimensions31cm*61cm*66cm30cm*61cm*48cm

    Influent Water Quality
    Total exchangeable anions
    (PPM calculated by CaCO3
    <25<25
    conductivity<43us/cm<43us/cm
    pH4~114~11
    Temperature5~40 ° C5~40 ° C
    Hardness (ppm in CaCO3)<1.0<1.0
    Silica (ppm based on SiO2)<1.0<1.0
    TOC(ppm)<0.5<0.5
    Turbidity (NTU)<1.0<1.0
    Chromaticity (APhA)55
    Residual chlorine (PPM)<0.05<0.05
    Fe,Mn,H2S(ppm)<0.01<0.01
    Oxidantnot detectednot detected
    Greasenot detectednot detected
    SDI (15min)<1.0<1.0
    Effluent QualityResistivity>16MOhm.cm>16MOhm.cm
    pH6.5-86.5-8
    Silica removal rateUp to 99% or less than 5ppb
    Boron removal rate>98%>98%
    Working ParametersMaximum water yield(m3/H)6.44.5
    Water production range(m3/H)2.3~6.41.7~4.5
    rate of recovery87-97%87-97%
    Voltage(VDC)0~4000~300
    Current(ADC)0~5.20~5.2
    Inlet pressure (bar)4.1-6.94.1-6.9
    Standard pressure drop (bar)1.4~2.81.4~2.8
    Differential pressure (bar)0.340.34

    Application:

    The MK-3 and E-CELL-3X series of e-celledi module is ge-edi module of electrodeionization, which uses current to deionize and polish the produced water of reverse osmosis. The water produced by mk-3 and E-CELL-3X of edi module is ultra pure water, which is suitable for the industries with more stringent water quality requirements.
