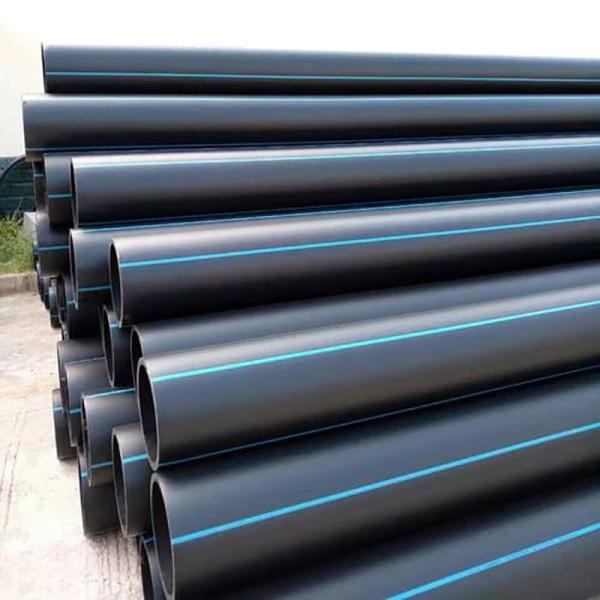

125mm Polyethylene Pipe Pe Water Supply System Pipe For Residential
And Light Commercial Use
----------------------------------------
Basic Info.
The main features of HDPE pipes are: good toughness and
flexibility; small friction coefficient and strong passing ability;
convenient construction, good chemical stability, long service
life, suitable deflection, good resistance to rapid crack
transmission, resistance to Low temperature, conform to the
requirements of the times, "green" environmental protection.
| Size | PN2.0MPa | PN1.6MPa | PN1.25MPa | PN1.0MPa | PN0.8MPa | PN0.6MPa |
| SDR 9 | SDR 11 | SDR 13.6 | SDR 17 | SDR 21 | SDR 26 |
| OD(mm) | thickness | thickness | thickness | thickness | thickness | thickness |
| 20 | 2.3 | 2.3 | | | | |
| 25 | 3.0 | 2.3 | 2.3 | | | |
| 32 | 3.6 | 3.0 | 2.4 | | | |
| 40 | 4.5 | 3.7 | 3.0 | 2.4 | | |
| 50 | 5.6 | 4.6 | 3.7 | 3.0 | | |
| 63 | 7.1 | 5.8 | 4.7 | 3.8 | | |
| 75 | 8.4 | 6.8 | 5.6 | 4.5 | | |
| 90 | 10.1 | 8.2 | 6.7 | 5.4 | 4.3 | |
| 110 | 12.3 | 10.0 | 8.1 | 6.6 | 5.3 | 4.2 |
| 125 | 14.0 | 11.4 | 9.2 | 7.4 | 6.0 | 4.8 |
| 140 | 15.7 | 12.7 | 10.3 | 8.3 | 6.7 | 5.4 |
| 160 | 17.9 | 14.6 | 11.8 | 9.5 | 7.7 | 6.2 |
| 180 | 20.1 | 16.4 | 13.3 | 10.7 | 8.6 | 6.9 |
| 200 | 22.4 | 18.2 | 14.7 | 11.9 | 9.6 | 7.7 |
| 225 | 25.2 | 20.5 | 16.6 | 13.4 | 10.8 | 8.6 |
| 250 | 27.9 | 22.7 | 18.4 | 14.8 | 11.9 | 9.6 |
| 280 | 31.3 | 25.4 | 20.6 | 16.6 | 13.4 | 10.7 |
| 315 | 35.2 | 28.6 | 23.2 | 18.7 | 15.0 | 12.1 |
| 355 | 39.7 | 32.2 | 26.1 | 21.1 | 16.9 | 13.6 |
| 400 | 44.7 | 36.3 | 29.4 | 23.7 | 19.1 | 15.3 |
| 450 | 50.3 | 40.9 | 33.1 | 26.7 | 21.5 | 17.2 |
| 500 | 55.8 | 45.4 | 36.8 | 29.7 | 23.9 | 19.1 |
| 560 | 62.5 | 50.8 | 41.2 | 33.2 | 26.7 | 21.4 |
| 630 | 70.3 | 57.2 | 46.3 | 37.4 | 30.0 | 24.1 |
| 710 | 79.3 | 64.5 | 52.2 | 42.1 | 33.9 | 27.2 |
| 800 | 89.3 | 72.6 | 58.8 | 47.4 | 38.1 | 30.6 |
| 900 | | 81.8 | 66.2 | 53.3 | 42.9 | 34.4 |
| 1000 | | 90.2 | 72.5 | 59.3 | 47.7 | 38.2 |
| 1200 | | | 88.2 | 67.9 | 57.2 | 45.9 |
| 1400 | | | 102.9 | 82.4 | 66.7 | 53.5 |
| 1500 | | | 110.2 | 88.2 | 71.4 | 57.6 |
| 1600 | | | 117.6 | 94.1 | 76.2 | 61.2 |
Advantage
Convenient welding: PE water pipes can be connected using hot melt
welding technology, which is simple to operate, firm in connection,
and not easy to leak.
Safety and environmental protection: PE water pipes do not contain
heavy metals and other harmful substances, comply with
environmental protection standards, and are safe and reliable to
use.
Price advantage: Compared with water pipelines made of other
materials, the price of PE water pipes is more favorable, so it has
a certain price advantage.
Low temperature resistance: PE water pipes have excellent low
temperature resistance and will not crack or deform even in
extremely cold environments.
Good wear resistance: PE water pipes have good wear resistance and
are not easy to wear even under high-speed flow conditions.
Good heat resistance: PE water pipes can withstand high
temperatures within a certain range without melting or deforming,
so they are suitable for water delivery applications in some
high-temperature environments.
Details
Application
Sewer Force Mains: HDPE pipes are used in sewer force mains, where
the pipes are pressurized to transport wastewater over longer
distances. Their strength and resistance to abrasion are beneficial
in these applications.
Aquaculture: HDPE pipes are used in aquaculture for the transport
of water in fish farming operations. Their non-toxic properties
make them safe for aquatic environments.
Hydroelectric Power Generation: HDPE pipes are used in
hydroelectric power plants for penstock systems, transporting water
from the reservoir to the turbines. Their smooth interior surface
contributes to efficient water flow.
Fire Sprinkler Systems: HDPE pipes are utilized in fire sprinkler
systems for their durability and reliability. They provide a
cost-effective solution for distributing water in buildings for
fire protection.
