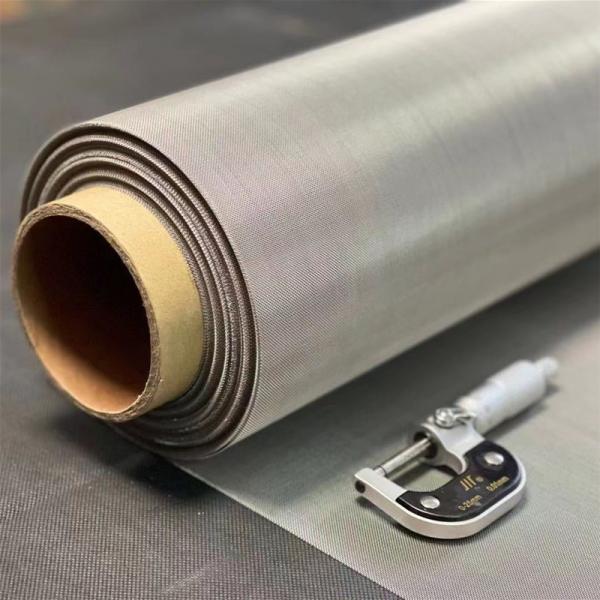

    200 Monel Mesh 0.1mm Thick Seawater Corrosion Resistant Filter Screen For Hydrogen And Oxygen Production

    Ask Lasest Price
    Brand Name : HUIHAOKST
    Model Number : HH-Monel Mesh-200
    Certification : ISO9001-2015
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 rolls 200 Monel Mesh per 28 days
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    200 Monel Mesh 0.1mm Thick Seawater Corrosion Resistant Filter Screen For Hydrogen And Oxygen Production


    Monel series materials include Monel400,Monel401, Monel404, MonelR405 and Monel K-500. The most popular monel mesh is made of Monel 400 or Monel K-500.


    Specification of monel wire mesh

    Monel Wire Mesh
    Mesh
    Wire Diameter (mm)
    Aperture (mm)
    2
    1.80
    10.90
    3
    1.60
    6.866
    4
    1.20
    5.15
    5
    0.91
    4.17
    6
    0.80
    3.433
    8
    0.60
    2.575
    10
    0.55
    1.990
    12
    0.50
    1.616
    14
    0.45
    1.362
    16
    0.40
    1.188
    18
    0.35
    1.060
    20
    0.30
    0.970
    26
    0.28
    0.696
    30
    0.25
    0.596
    40
    0.21
    0.425
    50
    0.19
    0.318
    60
    0.15
    0.273
    70
    0.14
    0.223
    80
    0.12
    0.198
    90
    0.11
    0.172
    100
    0.10
    0.154
    120
    0.08
    0.132
    140
    0.07
    0.111
    150
    0.065
    0.104
    160
    0.065
    0.094
    180
    0.053
    0.088
    200
    0.053
    0.074

    Weave Pattern
    Plain weave, twill weave, dutch weave
    Features
    Monel is a kind of nickel alloy.It has high strength and excellent corrosion resistance in a range of acidic and alkaline sitrations and especially sutiable for reducing conditions.It also has good ductility and thermal conductivity
    Applications
    marine engineering,chemical and hydro-carbon processing equipment,heat exchangers,valves,pumps
    Packing
    inside the roll with"paper tube"to reduce the pressure while loading;then wrapped with"plastic film"as well as the "woven bag"on the finished roll,final loaded in the strong woodencase

    Chemical Composition of monel wire

    Material
    C
    Mn
    Si
    S
    Ni
    Cu
    Fe
    Monel 400
    ≤0.30
    ≤2.00
    ≤0.50
    ≤0.024
    ≥63
    28.0~34.0
    ≤2.5

    Monel 400 Wire Mesh significantly resists de-aerated hydrochloric acid and hydrofluoric acids. It provides broad resistance to stress corrosion cracking in the fresh water and other corrosion conditions. It shows intense mechanical features at the subzero temperatures and firmness and toughness. It doesn't exhibit ductile to brittle transformation when quenched to fluid hydrogen temperature level.


    Material
    C
    Mn
    Si
    S
    Ni
    Cu
    Ti
    AL
    Fe
    Monel k-500
    ≤0.25
    ≤1.50
    ≤0.05
    ≤0.01
    ≥63
    27.0~33.0
    0.35~0.85
    2.30~3.15
    ≤2.0

    Monel K500 Wire Mesh offers excellent resistance to corrosion as well as large strength and hardness. The strength of this alloy is retained up to 1200oF however it shows ductility and toughness up to 400oF. It has very high melting temperature of 2400oF to 2460oF. The Monel K500 alloy has almost three times higher yield strength and tensile strength as compare to Monel 400 mesh.
