Customized Galvanized Hesco Military Barrier Bastion Sand Filled
Barriers For Security Protection
HESCO Military Barrier Available OEM & ODM in developing military barriers, we can
provide all ideal designs for your projects. The popular unit types
of blast wall , all types can be customized to recoverable types .
Regarding the color of geotextile, available in beige color,
militatry green color and grey color,etc. We will meet any special
sizes you required, and support professional advises according to
your projects.
operational principle
It is made of galvanized welded mesh, spring with other fittings,
canbe filled with sand,earth,cement, stone, can be used in separate
cell or some cells joint together.
Quick Details
| Unit Type | Height (M) | Width (M) | Length (M) | Internal Cells |
| KN-mil1 | 1.37 | 1.06 | 10 | 9 |
| KN-mil2 | 0.61 | 0.61 | 1.22 | 2 |
| KN-mil3 | 1.0 | 1.0 | 10 | 10 |
| KN-mil4 | 1.0 | 1.52 | 10 | 6 |
| KN-mil5 | 0.61 | 0.61 | 3.05 | 5 |
| KN-mil6 | 1.68 | 0.61 | 3.05 | 5 |
| KN-mil7 | 2.21 | 2.13 | 27.74 | 4 |
| KN-mil8 | 1.37 | 1.22 | 10 | 9 |
| KN-mil9 | 1.0 | 0.76 | 9.14 | 9 |
| KN-mil10 | 2.21 | 1.52 | 30.5 | 5 |
Detail Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly
burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.

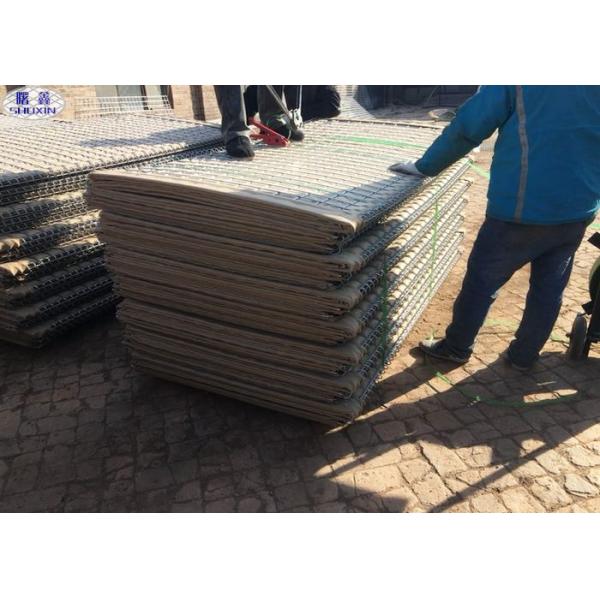

7. Packing: wrapped with shrink film or packed in pallet
Application
1. Environmental Barriers,Flood Barriers, a reliable,
easy-to-deploy and robust solution for emergency flood protection
or long-term wetland restoration

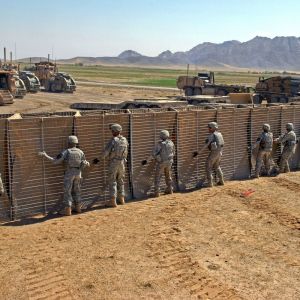

2. Defensive Barriers: Protecting both military and civilian
personnel in dangerous environments demands defensive solutions
that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure
refuge for your employees by
providing protection for up to eight people with Accommodation
Bunker.
4. Rockface: transforms the highly effective wall into an
aesthetically pleasing structure ideal for customer-facing
perimeter security where a more benign appearance is required.
Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
