    Multi Hop Ad Hoc Networking Protocols Wireless Transmitter And Receiver Suitable For Small Uav Telemetry

    Ask Lasest Price
    Brand Name : Guangdong, China
    Model Number : DS-MESH-1
    Price : negotiation
    Payment Terms : T/T
    Supply Ability : 200 Set/Sets per Month
    Delivery Time : 3-7 works days
    • Product Details
    • Company Profile

    Multi Hop Ad Hoc Networking Protocols Wireless Transmitter And Receiver Suitable For Small Uav Telemetry

    Specification

    Frequency 300-2500MHz available
    Bandwidth 5M/10M/20M/40MHz (Adjustable)
    RF power 30dBm (33dBm/36dBm Optional)
    Sensitivity -102dBm maximal
    Modulation DSSS/OFDM BPSK/QPSK//16-QAM/64-QAM
    Working voltage DC12V
    Power consumption ~ 5W
    Working temperature -40~ +65
    RF interface
    Ethernet port RJ45 * 2 (for any device that with Ethernet port)
    Operation Manual via Web Software
    Dimension 131*103*29mm
    Weight 460g
    Distance for 2 pcs

    1~1.5km LOS on ground level

    500m NLOS on ground level

    Long Range Transmission Low Delaying Video Acquisition Ip Mesh Wireless Audio Video Transmitter Receiver

    High security encryption mobile wireless IP mesh communication equipment other security product

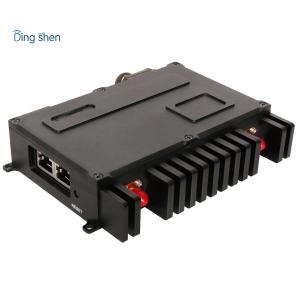

    DS-MESH-1 is a new robust Ethernet wireless transceiver radio special designed for N-LOS (Non line of sight)wireless IP MESH communication.It provides complete bi-directional video data IP networks transmission in complex environment,

    work as PTP communication and PTMP self-organized networking, each mesh group can access up to 10 nodes. Since its COFDM modulation with narrow band technology that able to extend the cover range and better diffraction even in moving conditions.
