Description
These I²C-compatible electrically erasable programmable memory
(EEPROM) devices are organized as 2048/1024/512/256/128 x 8
(M24C16, M24C08, M24C04, M24C02 and M24C01).
Features
■ Supports both the 100 kHz I2C Standard-mode and the 400 kHz I2C
Fast-mode
■ Single supply voltage:
– 2.5 V to 5.5 V for M24Cxx-W
– 1.8 V to 5.5 V for M24Cxx-Rev 16
– 1.7 V to 5.5 V for M24Cxx-F
■ Write Control input
■ Byte and Page Write (up to 16 bytes)
■ Random and Sequential Read modes
■ Self-timed programming cycle
■ Automatic address incrementing
■ Enhanced ESD/latch-up protection
■ More than 1 million write cycles
■ More than 40-year data retention
■ Packages:

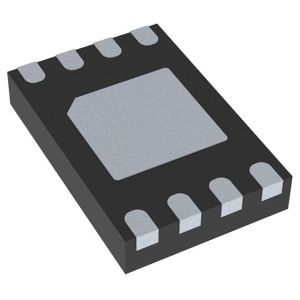

– SO8, TSSOP8, UFDFPN8: ECOPACK2®(RoHS-compliant and Halogen-free)
– PDIP8: ECOPACK1® (RoHS-compliant)
