Description

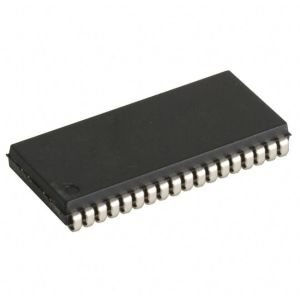

The IDT71V424 is a 4,194,304-bit high-speed Static RAM organized as
512K x 8. It is fabricated using IDT’s high-perfomance,
high-reliability CMOS technology. This state-of-the-art technology,
combined with innovative circuit design techniques, provides a
cost-effective solution for high speed memory needs.
Features
◆512K x 8 advanced high-speed CMOS Static RAM
◆JEDEC Center Power / GND pinout for reduced noise
◆Equal access and cycle times
— Commercial and Industrial: 10/12/15ns
◆Single 3.3V power supply
◆One Chip Select plus one Output Enable pin
◆Bidirectional data inputs and outputs directly TTL-compatible
◆Low power consumption via chip deselect
◆Available in 36-pin, 400 mil plastic SOJ package and 44-pin, 400
mil TSOP.
