Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon

    Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers

    Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers
    • Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers
    • Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers
    • Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers
    • Buy cheap Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon from wholesalers

    Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon

    Ask Lasest Price
    Brand Name : Goodyear
    Model Number : 1B7-544
    Certification : ISO/TS16949:2009
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

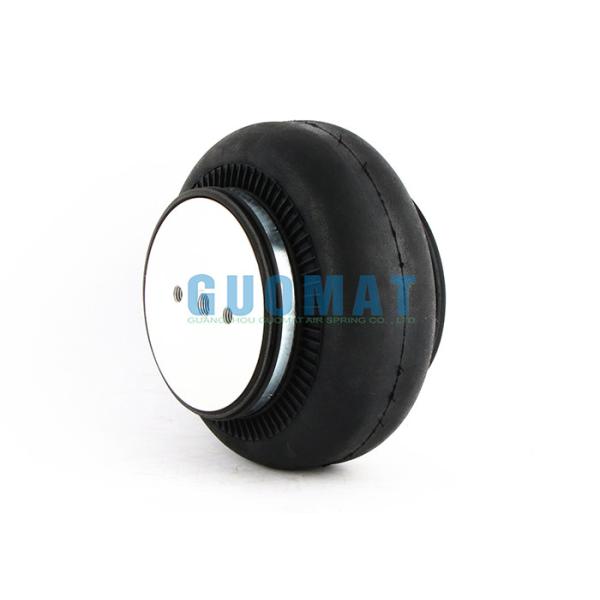

    Single Convoluted Bellows Type Goodyear Air Spring 1B7-544 Gas Filled Air Balloon

    Single Convoluted Bellows Type Air Spring 1B7-544 Goodyear Gas-Filled Air Balloon

    Product Description


    Goodyear 1B7-544 is an industrial air spring or bellows manufactured by Goodyear. It is a single-turn air spring used in a variety of applications such as measuring devices, knife spring actuators and vibrating screens. Air springs are made of rubber and steel materials and have a pressure capacity of 0.2-0.8 MPa.


    Product Name: Industrial Air Spring

    MOQ: 1 PCS

    Warranty: 12 Months

    Material: Rubber+Steel

    Package: Carton

    Payment: L/C ; T/T ; Western Union

    Bellows Type: Single Convolution
    Bumpers: W/O Bumpers

    Port of shipment NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN

    Shippment: Bye Sea, By Air, By DHL Fedex UPS EMS


    OEM Number / Cross Reference Number

    GOODYEAR : 1B7-544

    GOODYEAR : 1B 7-544

    GOODYEAR : 1B7 544

    GOODYEAR : 1B7544

    GOODYEAR : 579 913 544

    GOODYEAR : 579-913-544

    GOODYEAR : 579913544

    ENIDINE INC.: YI-1B7-544

    ENIDINE INC.: YI 1B7-544

    ENIDINE INC. YI1B7-544

    1B7-544 Air Spring Technical Data
    • 55mm Compressed Height
    • 195mm Maximum Outer Diameter
    • 75mm Stroke Length
    • 105mm Cover Plate
    • 120mm Natural Height
    • 70mm Center Distance Between Threaded Holes
    • M8 Threaded Hole
    • G1/4 Gas Hole

    Application of Industrial Air Springs in Paper Machine Equipment


    Industrial air springs have various applications in paper machine equipment. They are used in different parts of the paper manufacturing process to perform various functions. Here are some of the applications of industrial air springs in paper mills:


    Edge Control System: Air springs are used as an edge control system to align the bandage that carries the paper. The air bellow tightens or compresses itself depending on the bandage position, preventing misalignments and ensuring that the paper follows the right path .


    Web Tensioning: Industrial air springs are used to tense the web that carries out the paper. They help maintain the proper tension in the web, ensuring smooth paper production .


    Roll Press / Tensioner: Air springs are used as a press to extract humidity from the paper with the rollers located in the machine. They help remove moisture from the paper, contributing to the drying process .


    These are some of the key applications of industrial air springs in paper machine equipment. They play a crucial role in ensuring the smooth operation and efficiency of the paper manufacturing process.


    1B7-544 Goodyear Product.Specifications


    BELLOWS TYPESingle ConvolutionAIR INLET1/4 in
    FORCE @ 9 IN STROKEN/ASTROKE LENGTH [MAX]3.800 in
    PRESSURE [MAX]100 psiAIR INLET TYPENPT
    CONVOLUTIONS1FORCE @ 2 IN STROKE2500 IBF
    TEMPERATURE RANGE [MAX]150 °FCOMPRESSED HEIGHT1.8 in
    FORCE @ 1 IN STROKE2500 lbfTEMPERATURE RANGE [MIN]-40℉
    FORCE @ 3 IN STROKE1350 lbfWEIGHT2.85 LB
