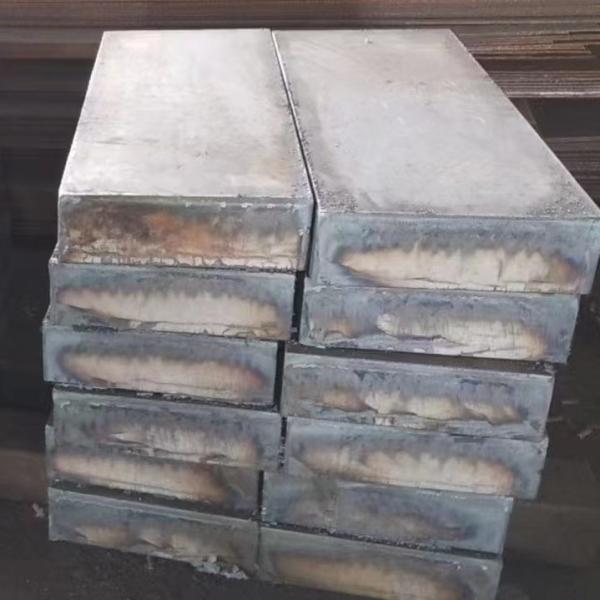

Hot Rolled & Forged Steel Plate 4140 / 42CrMo4 Alloy Steel Plate
Cutting Without Burr
Products Specification of Steel Plate
| Products Name | AISI4140/42CrMo4 / 1.7225 Steel Plate |
| Thickness | 4.0 - 150.0mm |
| Width | 100 - 2200mm custom cutting any size as request |
| Length | 6m 8m 10m 11.5m 12m or cutting any length as request |
| Standard | ASTM JIS GB EN |
| MOQ | 500 Kgs |
| Deliver time | 7 - 14 days |
| Loading Port | Shanghai Port |
| Packing | wooden pallets |
| Other Grade | AR400 / AR450 / AR500 / AR600 NM400 NM450 NM500 NM600 |
| Service | Cutting, Heat treatment |
What is 42CrMo4 (4140) (1.7225) Steel?
42CrMo4 alloy quenched steel, also known as 4140 steel or 1.7225
steel, is a common chromium-molybdenum steel with high density, and
high hardenability, usually used after tempering. 42CrMo4 quenched
steels have better performance than 34CrMo4 steels due to higher
carbon and chromium content. 4140 steel has higher strength and
hardenability in terms of its properties. The properties of AISI
4140 steel include high strength and good low-temperature impact
toughness. Therefore, its machinability is high.
Although it is more expensive than 41Cr4 steel, 4140 is preferred
regarding material properties. 42CrMo4 alloyed engineering steel
materials are widely used in automotive drive elements.
Our Service for our AISI4140 Allot Steel Plate
We have several cutting machine for customer cutting request. Our
cutting thickness from 4mm to 150mm. Cutting tolerance within ±5mm,
Cutting width range within 2500mm, cutting length within 10 meters.
Our cutting method is plasma cutting. The cutting edge is very
smooth without burr. We can cutting our plate into any shape as
clients request. If you have request on cutting plate. Please free
contact with me and send me your drawning of the cutting items.
Packing and shipping informations
- Packing: wooden pallets or original packing suitable for export
- Loading: 20ft conatiner or 40ft container
- Loading term: LCL or FCL
- Loading Port; Shanghai Port
- Deliver time: 5 - 15 days based on the detail quantity of the
materials.
Equal grade of 4140 / 42CrMo4 Alloy Steel
| EN | USA | Germany | Japan | France | England | Italy | Spain | China | Sweden | Finland | Russia |
| – | DIN,WNr | JIS | AFNOR | BS | UNI | UNE | GB | SS | SFS | GOST |
| 42CrMo4 (1.7225) | 4142 | 42CrMo4 | SCM440H | 42CD4 | CFS11 | 42CrMo4 | F1252 | 42CrMo | 2244 | 42CrMo4 | 38K |
Application of 4140 / 1.7225 Alloy Steel
1.7225 steel finds many applications as forgings for the
aerospace,oil and gas,automotive, agricultural and defense
industries etc.
Typical applications for 4140 steel uses include:forged
gears,spindles,fixtures,jigs,collars,Axles,conveyor parts,crow
bars,logging parts,shafts,sprockets,studs,pinions,pump shafts,
rams, and ring gears etc
