SAE8620/SAE8620H/20CrNiMo Alloy Steel Bar Structure Application
Alloy Steel Rod
Products Specification
| Products Name | SEA8620 / 20CrNiMo Alloy Steel Round Bar |
| Diameter | 10 - 320mm |
| Length | 6m or custom cutting any length as request |
| Type | Hot Rolled |
| Brand | BAOSTEEL DELTA DONGBEI HUAXI SHAGANG.etc |
| MOQ | 1 Ton |
| Loading Port | Shanghai Port |
| Packing | packing by steel wire rope |
| Deliver time | 5 - 7 days for stock materials |
| Other Grade | Q195,Q235,10#,20#,35#,45#,Q215,Q345,12Cr1Mov, 15CrMo,304,316,20Cr,40Cr,20CrMo,35CrMo,42CrMo, 40CrNiMo,GCr15,65Mn,50Mn,50Cr,3Cr2W8V,20CrMnTi,5CrMnMo |
| Standard | ASTM GB EN DIN |
| Application | Structure and Industrial |
Regular Standard Size of our SAE8620 Round Bar in Stock
| Standard Diameter | 10 12 15 18 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105
110 120 130 140 150 160 180 200 210 220 230 250 270 300 |
Other Alloy Steel Round Bar We Can Supply:
40CrNiMoA,4340,40CrNi2Mo,34CrNiMo6,17CrNiMo6,20CrNiMoA,8620H,35CrMo,Ⅴ40,20CrMnMo,20MnCr5,30CrNiMo8,18CrNiMo7
AISI SAE 8620 Steel (UNS G86200)
AISI SAE 8620 steel is a commonly used low-alloy material for
carburizing, with excellent carburizing response, good
hardenability for most section sizes, it has many extensive
applications due to its low cost, better machinability, and
availability.
Chemical Composition
AISI SAE 8620 steel chemical composition is listed in the table
below.
| SAE AISI 8620 Chemical Composition, % |
| Standard | Steel Grade (UNS) | C | Si | Mn | P, ≤ | S, ≤ | Cr | Ni | Mo | Cu, ≤ | O, ≤ | Al, ≤ |
ASTM A322;
ASTM A29/A29M | 8620 (UNS G86200) | 0.18-0.23 | 0.15-0.35 | 0.70-0.90 | 0.035 | 0.040 | 0.40-0.60 | 0.40-0.70 | 0.15-0.25 | – | – | – |
| ASTM A534 | 8620H | 0.17-0.23 | 0.15-0.35 | 0.60-0.95 | 0.025 | 0.015 | 0.35-0.65 | 0.35-0.75 | 0.15-0.25 | 0.3 | 0.002 | 0.05 |
Mechanical Properties
AISI SAE 8620 material mechanical properties are listed in the
following tables including yield strength (yield stress), tensile
strength, impact strength and hardness, etc.
Notes:
- 1 MPa = 1 N/mm2
- 1 GPa = 1 kN/mm2
| 8620 alloy steel mechanical properties |
| Steel (UNS) | Tensile strength, Mpa (ksi), ≥ | Yield strength, Mpa (ksi), ≥ | Elongation in 50 mm (2 in.), %, ≥ | Reduction in area, %, ≥ | Hardness, HB | Izod impact strength, J (ft·lbf) | Condition or treatment |
| 8620 (UNS G86200) | 633 (92) | 357 (52) | 26.3 | 59.7 | 183 | 100 (74) | Normalized at 915 °C (1675 °F) |
| 536 (78) | 385 (56) | 31.3 | 62.1 | 149 | 115 (83) | Annealed at 870 °C (1600 °F) |
Applications
The applications of AISI SAE 8620 steel including: Differentials
(automotive and off-highway), drives (industrial, tractor
accessory), engines, equipment (off-highway, steel or paper mill,
mining), starters. Gears, steering mechanism, gear box and
transmission components for cars.
Carburized gears, pinions, shafts, differential rings, steering
worms, engine crankshafts, spline shafts, chains, air drill parts,
chuck jaws, oil well bit and reamer cutters, piston pins, pneumatic
chucks, heavy-duty bolts, fasteners, and hand tools.
SAE AISI 8620 Equivalent Material
SAE AISI 8620 material equivalent to European EN (Germany DIN,
British BSI, French NF…), ISO, Japanese JIS and Chinese GB standard
(For reference).
| US | China | Japan | European Union | ISO |
| Standard | Grade (UNS) | Standard | Grade (UNS) | Standard | Grade | Standard | Standard |
AISI SAE;
ASTM A322;
ASTM A29/A29M | 8620 (UNS G86200) | GB/T 3077 | 20CrNiMo (A50202) | JIS G4053 | SNCM220 | | |

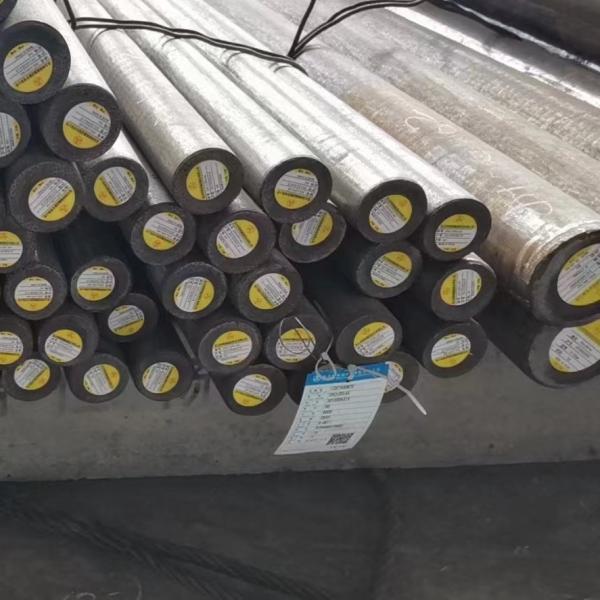

Products Show
