    UL & CE certificated 16-26AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

    Ask Lasest Price
    Brand Name : ECHU
    Model Number : UL1061
    Certification : UL. E312831
    Price : 0.0132-0.0389USD/M
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100000km/week
    Delivery Time : within 10days
    • Product Details
    • Company Profile

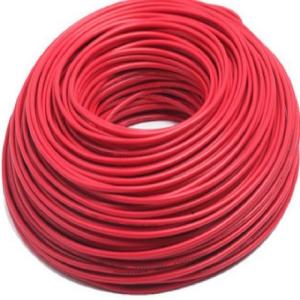

    UL & CE certificated 16-26AWG Bare or Thinned Copper Wire UL1061 with SR-PVC insulation with UL Certificated

    UL1061 Sr-PVC Insulated Copper Wire Electronic Wire & Cable, LED Light


    Product Description:
    ★ Rated temperature: 80ºC
    Rated voltage: 300V
    ★ Reference Standard: UL Subject 758, UL1581 & CSA C22.2 NO.210.2
    ★ Tinned or bare, stranded or solid copper conductor,30-16 AWG
    ★ Colour-coded lead free SR-PVC insulation
    ★ Uniform insulation thickness to ensure easy stripping and cutting
    ★ Passes UL VW-1 & CSA FT1 vertical flame test
    ★ Application: For internal wiring of electronic and electrical equipment,
    protection is required where mechanical damage is possible

    This type of cable have the advantage of the cable have smaller outside diameter, can meet higher using requirement.





    ConductorInsulationMaximum Resistance at 20ºC
    Ω
    /km
    AWGNo./mmDia.
    mm
    Nom. Thick.
    mm
    Nom.Dia.
    mm
    307/0.10.300.260.82354
    287/0.1270.380.260.90223
    267/0.160.480.261.00139
    2411/0.160.610.271.1588.9
    2217/0.160.760.261.2857.5
    2026/0.160.940.261.4634.6
    1841/0.161.180.261.7023.3
    1626/0.2541.490.262.0215.1
