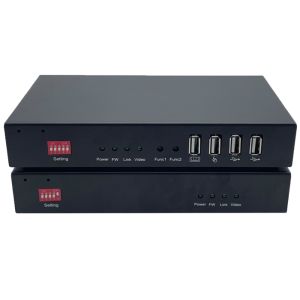

4k hdmi & usb kvm over fiber optic extender kit

Add to Cart

Product introduction:

1.Using coding transmission technology, the image is clear and smooth with mall delay;

2.Support audio microphone signal transmission;

3.Supports USB keyboard, mouse, USB 2.0 devices (USB devices such as U disk, U KEY, printer, mobile hard disk, etc.);

4.Single-mode single optical fiber signal interface transmission;

5.Support hot-swappable design;

6.Support high-definition video signal resolution display up to 3840*2160@30Hz;

7.Super 4 USB interface design to support the use of large-capacity USB devices.

Specification:

Specifications
Resolution	38402160@30Hz； 19201080 .... common resolutions
Transmitter	HDMI video interface 1 RS232 serial port 1 (optional function) USB Type B port 1 Audio interface 1 Microphone interface 1 RJ45 network port 1
Receiver	HDMI video interface1 RS232 serial port 1 (optional function) USB Type A port 4 Audio interface 1 Microphone interface 1 RJ45 network port 1
Transmission distance	10KM
RS232 baud rate	4800~115200bps
Device Case
Shell material	Metal shell
Color	Black
Dimension	185mm[L]×105mm[W]×33mm[H]
Power supply	Input:AC 100~240V 50/60Hz Output:DC 12V/2A (US/EU standard, CE/FCC/UL Certificate)
Operating temperature	Recommended operating temperature:0~50°C
Storage temperature	Storage temperature:-20~60°C
Relative humidity	Humidity :0~90% RH, No condensation

The interface ports for 4k hdmi & usb kvm over fiber optic extender kit :
