Product Description:

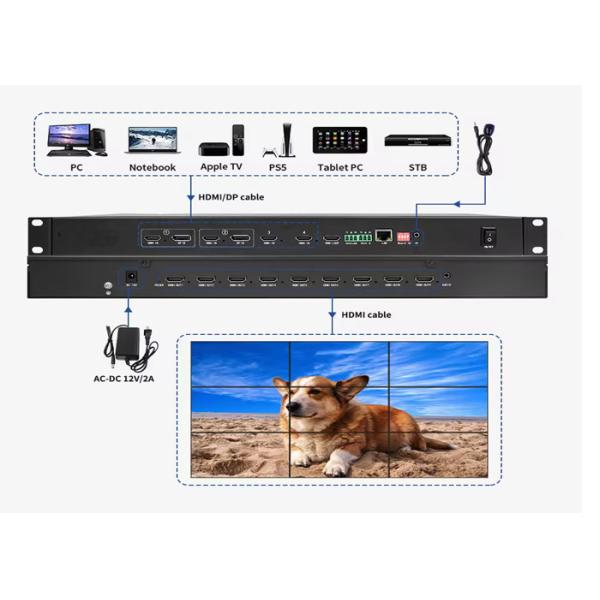

The VICAN HDMI video wall controller is a standalone video wall
controller that designed for the application of high-quality
multiple displays. It can duplicate a signal from one HDMI 4K video
input and distribute up to four video 1080p outputs. User can set 4
monitors into a large video wall for 2x2 combinations or 4x4
combination through daisy chained 4 units HDMI port together, and
each screen resolution can be up to 1920x1080.
Easy to control is another feature provided by WL-0404H HDMI video
wall controller. User can easily configure the video wall via an
RS-232 or IR remote control. In addition, with the built-in
advanced bezel compensation, it can be
effective to maintain the image continuity. It can be said the
perfect solution for Digital Signage and Video Wall.
Key Features:
- Multi-Screen Splicing Display: The VICAN HDMI video wall controller supports splitting a single video source across multiple displays,
with various splicing layouts (e.g., 2x2, 3x3, 4x4).
- High-Resolution Support: Capable of up to 4K Ultra HD (3840x2160) resolution output,
ensuring clarity and detail in visuals.
- Multiple Signal Inputs: Compatible with HDMI, DVI, VGA, and other input signals,
accommodating a wide range of video sources.
- Audio Synchronization: Built-in audio decoder ensures synchronized audio and video
output.
- Easy Configuration and Control: Configurable via PC software or remote control, supporting remote
operation and adjustments.
- Wide Compatibility: Supports various display types, including LED, LCD screens, and
projectors.
Technical Parameters:
| product name | HDMI video wall controller |
|---|
| Power Requirements | AC 100-240V, 50/60Hz |
|---|
| Display Mode | 2x2, 3x3, 4x4, and customizable layouts |
|---|
| Weight | 4.5kg |
|---|
| Dimension | 420x300x44mm |
|---|
| Video Resolution | 4K@60Hz |
|---|
| Input Interface | 1 x HDMI, 1 x DVI, 1 x VGA |
|---|
| Video Format | RGB/YUV444/YUV422/YUV420 |
|---|
| Power Supply | DC 12V |
|---|
| Audio Format | PCM, Dolby Digital, DTS |
|---|
| Output Interface | 4 x HDMI (options available for 8x, 16x outputs) |
|---|
Applications:
- Security Surveillance Centers: Ideal for multi-screen displays in monitoring systems, providing
real-time video wall splicing and switching.
- Digital Signage and Advertising: HDMI video wall controller used in malls, exhibitions, airports,
and other locations for multi-screen advertising with stunning
visuals.
- Conference and Presentation Systems: This wall controller is suitable for large conference rooms or
command centers for multi-screen presentations of various content.
- Entertainment and Sports Venues: Utilized in sports events, concerts, and large-scale events for
live broadcasting and screen splitting.
- Education and Training: Enhances learning experiences in classrooms or training centers
with multi-screen display capabilities.
The HDMI Video Wall Controller offers superior image quality,
flexible layout options, and extensive compatibility, making it an
ideal choice for modern video wall and multi-screen display
solutions.
