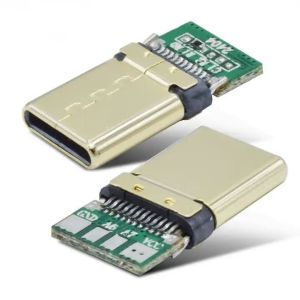

PD 3.0 USB 3.1 Type C Male Connector 5 Pin Solder for DIY USB C
Cable
Product Application:
Connector Type | USB C male | Operating temperature | -20°c to + 85°c |
Type | Solder Type | Contact | Copper with golden plated |
Gender of Connector | 16 Pin solder welding | Shielding | Copper alloy or stainless steel |
Contact Resistance | 30mΩ Max | Voltage Rating | 25V DC |
Insulation Resistance | 1000MΩ MIN | Insertion Force | 3.57Kgf MAX. |
Rated current | 3A | Durability | 10000 cycles |
Materials:
Body: LCP, UL94V-0 rated. color: Golden Plated
Shield: 304 Stainless Steel
Plating: gold plating over nickel on contact area
Contact: brass
Electrical:
Connector type: type USB C male connector
Rated current: 3amp
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance: 30MΩmax
Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min
Mechanical:
Operation voltage: 40V DC max
Current rating: 1 Ampere per contact
Contact resistance: 30m Ω max
Insulation resistance: 2000m Ω min
Dielectric withstanding voltage: 1200V AC
Operating temperature: -20°c to + 85°c
Application:
Products are widely used in computers, laptops, notebooks, mobile
phones, PHS, medical facilities, GPS, etc. FURAN Company's main
products are universal headphones, mobile phone data connectors,
USB connectors, Mini USB connectors, Micro USB connectors, USB
terminals, universal data lines, etc.
Our Advantage
1 > 15 years of experience
More than 15 years of experience in MALE / Female connector
developing, producing, and marketing; our products are sold to more
than 800 customers in 63 countries; what’s more, has provided over
1000 models of Female Connectors for our customers.
Amphenol, Huawei, LG, Samsung, Foxconn, and Skyworth are our customers
2 > Quality Guarantee
Rigorous production and quality check in each section, providing 6
6-year warranty for all our Female Connectors.
3 > Responded within 24 hours
All inquiries will be replied to within 24 hours of the working
day.
Our Service
1. we aim to make sourcing connectors easy for you.
2. We'll reply to your inquiry within 24 hours, Online Inquiry is
Welcome
3. We provide OEM, ODM service, and Any of the special connectors
requested, We are going to make a new mold for you but the mold
costs half for each.
4. 20pcs free samples, For repeat order customers, We'll provide
more than 20pcs samples for prototype projects if necessary.
5. Our business is not just about connector supply, it's about
delivering promises.
Why Choose Us?
1) Your inquiry related to our products or prices will be replied
to in 24 hours.
2) Well-trained and experienced staff to answer all your inquiries
in fluent English
3) OEM and ODM, any of your customized female connectors we can
help you design and put into product
4) Distributer ships are offered for your unique design and some of
our current models
5) Protection of your sales area, ideas of design, and all your
private information
6) Have the perfect after-sales service for all our clients
