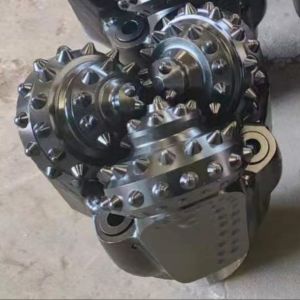

    200mm IADC545 Tricone Bit Mining Coal Mine Drilling HDD Trenchless

    Ask Lasest Price
    Brand Name : GLORYTEK
    Model Number : 200mm IADC545
    Certification : SGS, TUV
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 100sets/month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    200mm IADC545 Tricone Bit Mining Coal Mine Drilling HDD Trenchless

    200mm IADC545 Air Drilling Tricone Rock Bit for Mining Drilling Projects


    Description
    According to cutting material,tirocne bit can be divided into TCI bit and Steel Tooth Bit .
    TCI is short for Tungsten Carbide Insert, tungsten carbide is regular hard material in rock drilling field, another material is diamond.
    Inserts means Tungsten Carbide teeth that's fitting on cones of rotary drilling roller cone bits. API TCI tricone drill bit IADC617 have type of Rubber /Elastomer sealed bearing and Metal sealed bearing. We suggest that we had better choose metal face sealed bearing bits for deep rock wells with hard formations.For very deep well drilling, we recommend Metal-face sealed bearing tricone bits in drilling depth exceeds 1000 meters, For hard rock and long distance trenchless pilot hole drilling that length exceeds 300 meters we also recommend metal-face sealed bearing tricone bits.For water well drilling, shallow well drilling or shorter distance trenchless pilot hole drilling projects, elastomer(rubber) sealed bearing tricone bits has better cost performance.
    ProductTricone Bit
    ModelTCI BIT, STEEL TOOTH BIT

    IADC CODE
    116 117 126 127 136 137 216 217 226 316 317 326 327 336 337 115 125 135 215 225 235 315 325 335 114 124 214 314 111 121 131 346 347
    417 427 437 517 527 537 617 627 637 737 837 832 415 425 435 445 525 625 635 416 427 436 446 447 516 526 537 547 516 536 535
    available sizesFrom 2 7/8 to 26"
    larger sizes for hole opener bit ,reamer bit
    advantagemost favorable price and best quality
    bearing typesealed bearing and non-sealed bearing
    metal sealed journal bearing
    rubber sealed journal bearing
    aircooled bearing type
    Formation or layerSoft, medium soft, hard, medium hard, very hard formation
    Button size (extra features)Button bit, saw teeth
    1) Y-Conical teeth 2) X-chisel teeth
    3)K- wide teeth
    4)G- Gauge protection
    PackingWooden case
    Delivery termsBy sea or by air
    MarketCanada, USA, Middle east ,Africa, Europe
    ApplicationPetroleum & gas ,water well ,mining and tectonic industries ,oil field, construction, geothermal, directional boring, and underground foundation work
    Technical Parameter
    Basical Specification
    Bit Size200mm
    IADC Code:545 etc.
    Thread Connection2 3/8 API REG PIN
    Seriesrubber sealed / metal sealed
    Packing of Tricone Rock Bit


    Packing: standard exporting packing.
    Delivery: Normally 7-10 days after your advanced payment.


    The type we can supply:
