Product Description:
Automotive FAKRA Connectors play a crucial role in high-frequency
applications for vehicles. These connectors are designed with
versatile features that optimize connectivity. They include coaxial
cable connectors, available in both straight and elbow
configurations, providing flexibility for installation.
With 13 mechanical and color codes, as well as a universal code,
these connectors offer a standardized and efficient system for
various applications. This allows for easy identification and
compatibility with different vehicles. Additionally, the first and
second locking systems ensure high assembly reliability, enhancing
the overall robustness of the connection.
These connectors are designed to withstand diverse environmental
conditions, operating within a temperature range of -40 °C to +105
°C. This makes them suitable for use in various automotive systems,
including radio antennas, GPS antennas, in-vehicle mobile
communications, RF Bluetooth applications, and more. With their
superior performance and reliability, FAKRA RF connectors have
become the standard for high-frequency connectivity in modern
vehicles.
Features:
- Impedance 50 Ω: Maintaining optimal signal transmission with a 50 Ω impedance.
- Frequency Range DC up to 6 GHz: Suitable for a wide range of high-frequency applications,
operating from DC up to 6 GHz.
- High Data Rates up to 8 Gbps: Capable of handling data rates up to 8 Gbps, ensuring efficient
data exchange.
- Return Loss ≥ 18 dB: Preserving strong signal integrity during transmission with a
return loss of ≥ 18 dB.
- Temperature Range -40 °C to +105 °C: Designed for durability, these connectors operate in a temperature
range from -40 °C to +105 °C.
- Mating Cycles ≥ 25: Designed for long-lasting performance, offering a minimum of 25
mating cycles.
- 13 Mechanical and Colored Codings and One Neutral Coding: Providing versatility with 13 mechanical and colored codings,
along with one neutral coding.
- Primary and Secondary Lock: Equipped with a primary and secondary lock for secure and reliable
connections.
- RoHS, WEEE, ELV Conformity: Meeting environmental standards with RoHS, WEEE, and ELV
conformity.
Technical Parameters:
| Key | Value |
|---|

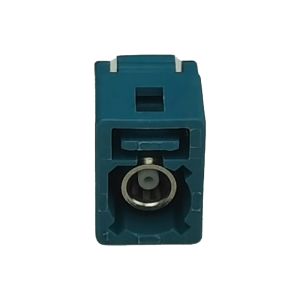

| Product Name | High-quality FAKRA Connector |
| Coding | Z-code |
| Impedance | 50Ω |
| Number of Ports | Single Port |
| Operating Temperature | -40°C ~ +105°C |
| Application | Data Transmission, Coaxial |
| Business Type | OEM&ODM |
Applications:
- Radio Antenna: FAKRA Connectors provide reliable interfaces for seamless signal
transmission in radio antenna applications.
- GPS Telematics or Navigation: Ensuring precision in GPS telematics and navigation for accurate
location-based services in vehicles.
- Infotainment & Television: Integral to infotainment and television systems, enabling
high-quality audio and video playback.
- Mobile Communication: Pivotal in supporting seamless connectivity for in-vehicle mobile
communication systems.
- RF Bluetooth / WLAN Applications: Facilitating efficient wireless communication within the vehicle
for RF Bluetooth and WLAN applications.
- Radio Frequency Remote Control for Keyless Entry: Utilized for radio frequency remote control, enabling keyless
entry systems for vehicle security.
- Vehicle Auxiliary Heating: Supporting auxiliary heating systems, contributing to efficient
temperature control for enhanced comfort.
- Sensors for Detection, Evaluation, and Reaction: Crucial in connecting sensors for the detection, evaluation, and
rapid reaction to various environmental factors in automotive
systems.
FAKRA Coding:
Customization:
Customized FAKRA Connector from LEADSIGN
We accept OEM and ODM orders. Customized cable types, connector
types and cable lengths are available. We will be happy to consider
your requirements in order to provide an effective solution. Please
feel free to contact us. Excellent customer service and technical
support are always available to support our customers.
