HSD High-Speed-Data Connector Systems in Automotive Industry
Applications
HSD+2, +4, +8 connectors are essential components in high-speed
data transmission systems used in the automotive industry. These
connectors can handle frequencies of up to 6 GHz, making them ideal
for use in various automotive applications.
The Advantages of HSD Interconnect Systems
HSD connectors are designed to meet the specific requirements of
real-time automotive industry applications, including high-speed
data and low-voltage needs. With compact and durable construction,
these interconnect systems feature homogeneous impedance control
and 100 Ohm impedance for reliable performance. The fully shielded
design utilizes shielded twisted quad cables, providing excellent
protection against interference.
Furthermore, HSD connectors are equipped with mechanical keying and
latching for secure connection retention, as well as coding to
prevent misuse. These features make them an ideal choice for a
variety of applications such as LVDS cameras, USB connections,
Ethernet (IEEE 802.3), and Firewire (IEEE 1394).
Features:
- Mechanical and Colored Codings:This connector is available in different mechanical and colored
codings, as well as a neutral coding option.
- Primary and Secondary Lock:Equipped with both primary and secondary lock mechanisms, this
connector ensures high assembling security.
- Compatible with Various Standards:This connector is compatible with several standards, including USB
1.0, 2.0, 3.0, LVDS, Firewire (IEEE 1394), and GVIF.
- Secure Coding System:With its secure coding system, this connector helps prevent any
misuse.
- Reliable and Durable:Built to be reliable and durable, this connector is suitable for
long-term use.
- Multiple Housings:This connector is available in multiple housings, allowing for
space savings and quick plug-in operations.
Technical Parameters:
| Technical Parameters | Value |
|---|

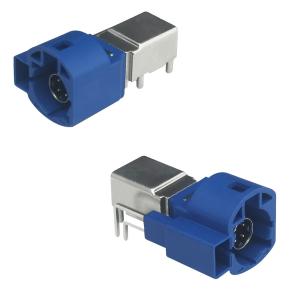

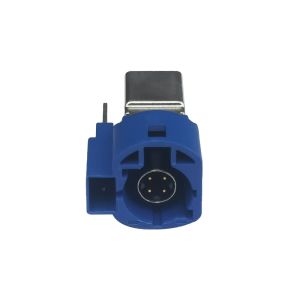

| Product Name | FAKRA HSD LVDS 4Pin Connector |
| Working Voltage | 60 V Rms |
| Frequency Range | DC To 6 GHz |
| Impedance | 100Ω |
| Mounting Type | PCB Mount |
| Operating Temperature | -40℃ To +105℃ |
| Orientation | Right Angle Type |
| Number of Positions | 4+2Pin |
| Applications | LVDS Camera, USB, And IEEE 1394 |
| Services | OEM ODM Accept |
Applications:
- Automotive Electronics:The automotive industry relies heavily on the integration of
advanced electronic systems to enhance safety, functionality, and
connectivity in vehicles.
- Telecom Industries:The telecommunications industry, including radio base stations,
also utilizes advanced electronic systems for efficient data
transmission.
- Digital Infotainment Electronics:In-car entertainment and communication systems, such as navigation,
audio, and video systems, are powered by digital infotainment
electronics.
- Digital Symmetrical Networks:Digital symmetrical networks, such as LVDS cameras, USB
connections, Ethernet (IEEE 802.3) and Firewire (IEEE 1394), are
crucial for high-speed data transmission and communication in
various industries.
HSD Coding:
Customization:
HSD PCB Connector
Custom cable types, connector types and cable lengths are
available. Make sure that the RF cable assembly is suitable for
your project. We will be happy to consider your requirements in
order to provide an effective solution. Please feel free to contact
us.
Support and Services:
- Accept OEM and ODM orders.
- Samples are free of charge, only the customer has to pay the
courier fee.
- Support multiple logistics methods.
- Fast delivery time and first-class service.
