    12 Tons Underground Mining Truck With YUNEI 4102 Engine

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : UQ-12
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 8 - 16 days
    • Product Details
    • Company Profile

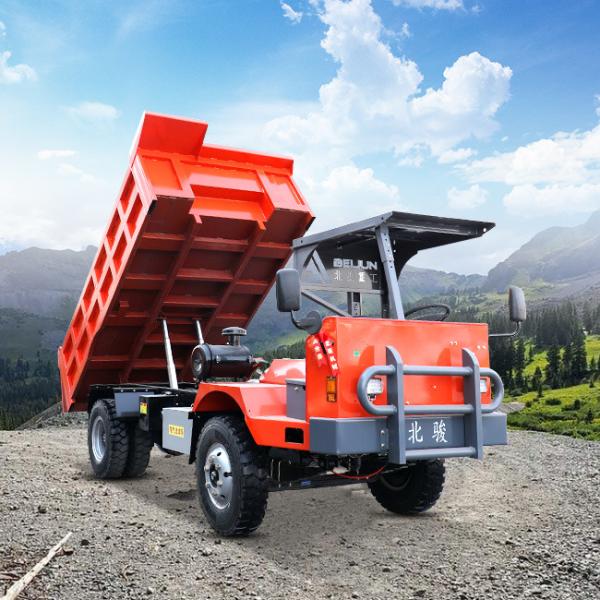

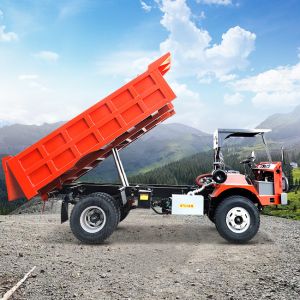

    12 Tons Underground Mining Truck With YUNEI 4102 Engine


    Product parameters of 12 tons Underground Mining Truck


    The structure of the engine, chassis and cab of a dump truck is the same as that of a general truck. The high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and there is a cab safety protection plate at the front end of the carriage. The engine drives the hydraulic pump through the transmission and the power take-off device. The hydraulic tilting mechanism of the carriage is composed of a fuel tank, a hydraulic pump, a distribution valve, a lifting hydraulic cylinder, a control valve and an oil pipe. The engine drives the hydraulic pump through the transmission and the power take-off device, and the high-pressure oil enters the lifting hydraulic cylinder through the distribution valve and the oil pipe, and pushes the piston rod to overturn the carriage. Lateral tipping is more common, and the movement of the piston rod is controlled by the steering system to stop the carriage in any desired tilted position. The carriage is reset using its own gravity and hydraulic control.


    The truck Certified to mine safety standards. It have the characteristics of large traction, good climbing performance and strong transportation capacity.The truck Dimension is small, Suitable for working in narrow mine tunnel. Exhaust gas treatment is Water filter purifier, reducing air pollution when working in underground mines. Dump trucks can be used for: medium and short distance road transportation, pit coal mine transportation, sand transportation, and urban waste transportation. The underground transport vehicle has good climbing performance, not only can adapt to different environments, but also can perform well in places with large slopes. It is widely applicable to complex road conditions with narrow and curved roadways with large slopes. The underground transport vehicle is a model that is very suitable for use in mining areas.


    ModelUQ-12
    Engine ModelYUCHAI 4102 with Turbocharge
    Engine Power81KW/110HP
    Total Dimension5000*2000*1700mm
    Transmission ModelWanliyang 545
    Transmission Gear5 Forward Gear, 1Back Gear,Rear High Speed Controller
    Drive Mode4x2
    Front Axle Model1098
    Rear Axle Model1098
    Tire Model825-16 Radial steel tire,
    Rear Double Tyre One Side,
    No.of Bottom Spring PlateFront 10 PCS, Rear 10 PCS, Spare 6PCS
    Dimension of Bottom Spring PlateLength 70mm, Width 10mm
    Size of the Bucket:Length×width×height3400mm*2000mm*700mm
    Type of BucketU-type
    Thickness of Bucket Steel Platebottom 8mm side 6mm
    Unloading TypeHydraulic Double Top Dump
    Steering TypeHydraulic power steering
    Braking TypeAir Brake
    CabinCanopy
    Driving PositionLeft Hand Drive
    Cooling sytemStandard Water Cooling System
    Loading Capacity12 Tons
