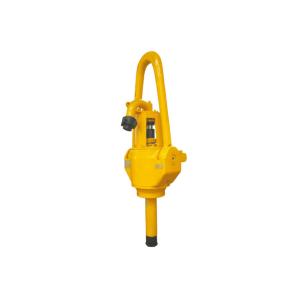

    API SPEC 8C PSL1 Truck Mounted Drilling Rig Swivel Common And Double Duty

    Swivel


    Swivel has two categories, common swivel and double duty swivel. Double duty swivel is common swivel combined with spinner.
    The company' s swivel matches the API SPEC 8C PSL1 products standards.
    It received the API certification issued by the American Petroleum Institute and allow to use API monogram.
    Washpipc packing set assembly adopts casscttc structure.
    It can be exchanged quickly without disassemble rotary hose and gooscncck.
    May matching 3LP and 4LP internal or external thread hose conncction thread.
    The company can also manufacture low temperature resistant swivel according to customer's requirement.
    Common swivel consists of swivel bail,shell. Support. gooseneck. central pipe . master bearing . joint other parts.
    The lower end conncctcd with kclly stcni by REG thread. The swivel bail is hang on the hook.
    Gooscncck and rotary hose can conncctcd by REG thread conncction or union conncction (Under normal circunistanccs, the CH125 swivel not welded thread joint, other types of swivel welded 4LP external thread).
    型号typeCH125SL135SL160SL170SL225SL315SL450
    最大静载荷 kN
    Max.Dead Load
    1250135016001700225031504500
    最高转速r/min
    Max.Revolution
    300
    最大工作压力 Mpa
    Max.Working Pressure
    2135
    鹅颈管中心线与垂线夹角
    Angle between the gooseneck central line and vertical line
    15°
    接头下螺纹
    Lower thread
    6⅝REG-LH
    中心管通径 mm
    Bore Size of Central Pipe
    Φ68Φ60Φ70Φ75
    冲管通径 mmΦ70Φ57.15Φ70Φ75
    提环弯曲处断面 mm
    Fractured surface at bail bend
    116×90
    R50
    R67.5115×95
    R63
    125×115
    R60
    70×120
    R60
    180×140
    R70
    180×165
    R75
    提环弯曲半径
    Bail bend radius
    R105R115R120
    外形尺寸(长×宽×高) mm
    overall dimension
    2100×660×6202290×650×6402470×790×6802725×840×7852970×1040×9803010×1040×9803040×1110×1095
    质量 weight62577710001250250027002900
