Computer control electrohydraulic servo pressure tester
1. Product introduction:

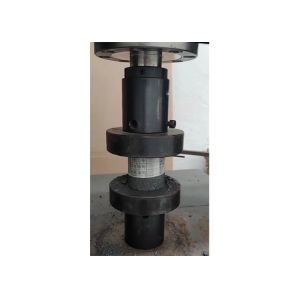

The WAW-Y2000DX type microcomputer control electrohydraulic servo
pressure test machine is a high-precision material compression test
machine. Suitable for metallurgy, building materials, aviation,
aerospace, colleges and universities, scientific research
institutions and other fields. Test of the electromechanical and
hydraulic integration equipment. It is composed of four parts: test
host engine, oil source (hydraulic power source), measurement and
control system, and test instrument.
2. Price advantage:
We increase our own research and development efforts, built
processing center, produce the core parts independently, so we
could reduce link costs with the same quality. Our good quality
products could save you much more than some other low price but bad
quality products. Reducing the failure rate of the machine to
reduce the customer's maintenance costs, but also improve the
efficiency of the machine, this price with high quality could give
customers real benefits.
3. Standards:
GB/T 3722-1992 Hydraulic pressure tester
GB/T 50081－2002 Compressive strength test of ordinary concrete
GB/T 17671-1999 Inspection method of cement
GB/T 2542-2003 Test method for wall brick laying
GB 13544-2000 Sintered porous brick test,
GB/T 5101-2003 Requirements for sintering ordinary brick strength
test.
4. Main technical parameters:
| Maximum test force | 2000kn |
| Test machine level | 0.5 |
| Effective force measurement range | 2%～100% |
| Error of the test force indication value | ±1% |
| Maximum distance between upper and lower plates | 0-320mm |
| Size of upper and lower pressing plate | 300*260mm |
| Column left and right span | Not less than 300mm |
| Maximum travel trip of the work piston | Not less than 100mm |
| Piston speed | 50mm/min |
| Oil pump rated flow | 5l/min |
| Overall dimension of the hydraulic source | 1100×700×1100(mm) |
| The main size is about | 680×680×1800(mm) |
| Total power | 3kw(380v) |
| Source | Three-phase five-line system |
| Weight | 1600kg |
5. Packing and Shipping
6. Frequently Asked Questions:
Q1. Are your company a trading one or a factory?
A: Factory + trade (ntegration), 18 years focusing on test
instnments feld, 14 years export experl ence.
Q2. How to choose the most suitable products?
A: Our professional leam will give you the best suggestion as long
as you tell us what kind of test you need to do and the required
specification
Q3.what's the dellvery term?
A: At most of time, we have stock in the factory. If there is no
stock, normaly, the delivery time is 15-20 working days after
deposit receipt
If you are in urgent need, we can consider making special
arrangement for you.
Q4.Do you accept customization service?
A: Yes, of course, we can not only offer standard machines, but
also customized machines according to your request.
Don't hesitate to tell us your requirement we will try our best to
meet your needs.
Q5. Can we visit your factory betore order?
A: Yes, we warmly welcome and sincerely invite you or your team to
vist our factory, we will help to arrange hotel and pick up you
from airpor.
Q6. How about your warranty?
A: Generaly, our waranty is one year witrin the warranty period. we
can offer technlque support and part parts change. Necessarily, our
engineers may go to your place for better service.
Q7. How about the packing for machine, Is it safely protected
during transportation?
A: Our machine is packed by standard export wooden box, it won't be
damaged. We've delivered many testing machines abroad by sea or by
ar without damage.
