Woven Gabion Baskets Are Flexible, Durable and Versatile for River
Slope
Woven Gabion Baskets product:

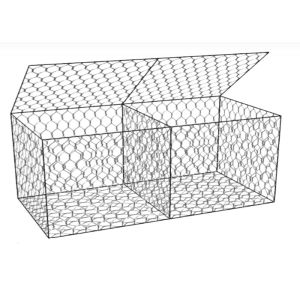

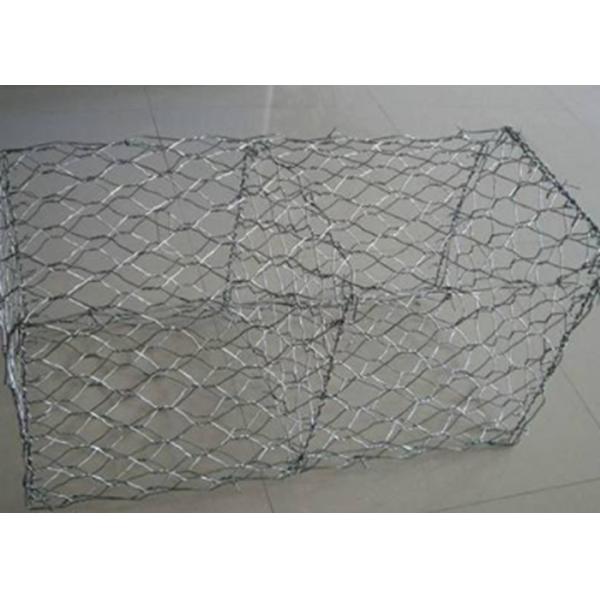

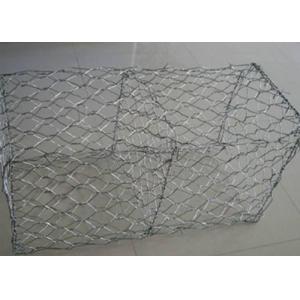

Woven gabion baskets are wire mesh containers that are filled with
stones or other materials to create a strong and durable structure.
They are commonly used in civil engineering projects for erosion
control, retaining walls, and slope stabilization.
The baskets are typically made of galvanized steel or PVC-coated
wire mesh, which provides corrosion resistance and longevity. The
wire mesh is woven into a grid pattern, creating a flexible and
sturdy structure that can withstand the forces exerted by the
filling material.
To construct a woven gabion basket, the wire mesh is cut into
panels and then folded and interconnected to form a box-like
structure. The edges are laced or fastened together using wire or
fasteners. Once the basket is assembled, it is filled with stones
or rocks, which provide weight and stability.
Woven gabion baskets offer several advantages over other
construction methods. They are relatively quick and easy to
install, require minimal foundation preparation, and can adapt to
uneven terrain. The flexibility of the wire mesh allows the baskets
to conform to the shape of the ground, making them suitable for
various applications.
Woven Gabion Baskets Features:
- Robust and flexible structure.
- Excellent permeability.
- Good corrosion and rust resistance.
- High tensile strength.
- Good durability and long lifespan.
Woven Gabion Baskets Specification:
| Product | Woven Gabion Baskets |
| Materials | hot dipped galvanized steel wire ,heavy galvanized coating steel
wire , Galfan wires, PVC coated wires. |
| Colors | green ,gray and any color is available upon your request. |
| Mesh Opening | 60 × 80 mm, 80 × 100 mm and other customized sizes. |
| Gabion sizes | 2 × 1 × 1 m, 1 × 1 × 1 m, 3 × 1 × 1 m and customized sizes. |
| Surface treatment | Heavy galvanization.Zinc coating plus PVC coating.95% Zinc ＋ 5% Al
alloy coating.95% Zinc ＋ 5% Al alloy coating plus PVC coating. |
| Gabion height type | Gabion box and gabion mattress. |
| Available minimal rock size | 100 mm – 250 mm dense and durable stone. |
| Length | Maximum 6 m. |
| Width | Maximum 3 m. |
| Height | 0.17 m, 0.21 m, 0.3 m, 0.5 m, 1 m, 1.5 m, etc. |
| Mesh wire diameter | 2.0 mm – 4.0 mm. |
| Lacing wire | 2.2 mm. |
| Standard | ASTM A975-11 Standard Specification for Double–Twisted Hexagonal
Mesh Gabions and Revet Mattresses. |
| packaging | Nude package,compacted before packaging. Plastic packaging outside on the pallet. |
| Popular Sizes of Woven Gabions |
| Gabion box/Mattress Size | Wire Diameter | Mesh opening | Diaphragm (unit) | Number of Cells |
| length (m) | Width (m) | Height (m) | Mesh Wire (mm) | Selvage Wire (mm) | Tie Wire (mm) |
| 2.0 | 1.0 | 0.15–0.3 | 2.0
2.2
2.4
2.7
3.0 | 2.4
2.7
3.0
3.4
3.9 | 2.0
2.0
2.0
2.2
2.4 | 60 × 80
80 × 100
80 × 120
100 × 120
100 × 150
120 × 150 | 1 | 2 |
| 3.0 | 1.0 | 0.15–0.3 | 2 | 3 |
| 4.0 | 1.0 | 0.15–0.3 | 3 | 4 |
| 1.0 | 1.0 | 0.5 | 0 | 1 |
| 1.0 | 1.0 | 1.0 | 0 | 1 |
| 2.0 | 1.0 | 0.5 | 1 | 2 |
| 2.0 | 1.0 | 1.0 | 1 | 2 |
| 3.0 | 1.0 | 1.0 | 2 | 3 |
| 3.0 | 1.0 | 0.5 | 2 | 3 |
| 4.0 | 1.0 | 1.0 | 3 | 4 |
The quantity of tie wire: 2% weight of gabion box
All sizes can customized according to your request |
Woven Gabion Baskets Applications:
- Erosion protection.
- River bank protection.
- Retaining wall.
- Channel lining.
- Noise barriers.
- Tunnel culverts
- Slope protection.
- Foundation pit protection.
- Roadway and bridge protection.
- Railway expressway isolation and protection block.
Roadway and bridge protection
Slope protection
River bank protection
