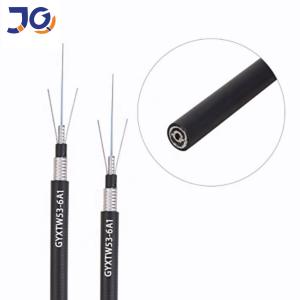

2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable

    Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers

    Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers
    • Buy cheap 2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable from wholesalers

    2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable

    Ask Lasest Price
    Brand Name : JQ
    Model Number : GYXTW53
    Certification : CE/ISO9001
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 8000 kilometers per month
    Delivery Time : 2-5days
    • Product Details
    • Company Profile

    2 4 6 12 24 core Outdoor Direct Burial Double Steel Armoured GYXTW53 Fiber Optical Cable

    Product Description:
    GYXTW53 is an outdoor communication cable with metal strength components, loose tube filled with adhesive construction, polyethylene laminated sheath longitudinally covered with corrugated steel tape armored polyethylene outer sheath 125μm of fibers placed in loose tubes made of high modulus plastic. The tube is filled with a waterproof filling compound. The pipe is covered lengthwise with PSP. A water-blocking material is used between the PSP and the loose tube to maintain the compactness and watertightness of the cable. Two parallel steel wires are placed on either side of the steel strip. The cable is sheathed with polyethylene (PE).

    Characteristics:

    ■ Compact structure, light weight, easy to install.
    ■ Single tube gel filled structure provides excellent fiber protection.
    ■ Loose tube material has good hydrolysis resistance and high strength.
    ■ Steel tape armouring, good extrusion resistance, protect the cable from rodent attack and mechanical damage.
    ■ Parallel steel wire reinforcement, embedded steel wire provides ideal tensile strength and compressive resistance.
    ■ Good environmental and mechanical properties.

    Application:

    1. Suitable for outdoor distribution.
    2. Suitable for overhead and pipeline laying methods.
    3. Long-distance and LAN communication.

    Specification:

    Model Number GYXTW53
    Fiber count 2-24 Cores
    Fiber Type G652D or as your need
    Structure Central loose Tube
    Jacket material PE
    Armored corrugated steel tape/Aluminium tape
    strength member Two parallel steels
    Certification CE/ROHS/ISO9001
    Strength member Steel Wire
    Application Buried
    1310nm ≤0.34dB
    1550nm ≤0.21dB
    Package Wooden Reel
    Operating environment: - 40 ~ 60 ℃


    Structure and Technical Specifications:

    cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM) Suitable temperature
    (MM) (KG) allowable Crush load(N/100mm)
    Long term Short term long Term short term long Term (℃)
    Short term
    2 12 165 3000 1000 1500 500 20D 10D 20
    4 12 165 3000 1000 1500 500 20D 10D 20
    6 12 165 3000 1000 1500 500 20D 10D 20
    8 12 165 3000 1000 1500 500 20D 10D 20
    10 12 165 3000 1000 1500 500 20D 10D 20
    12 12 165 3000 1000 1500 500 20D 10D 20
