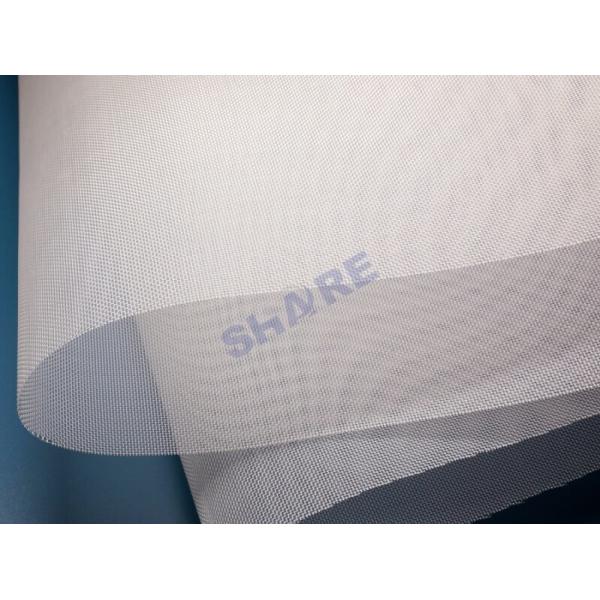

SHARE provides a broad range of polypropylene monofilament woven
filter mesh and component with mesh openings from 75um to 3360um. Polypropylene (PP for short) filters provides wide thermal &
chemical compatibility and ideal for medical industry, liquid
filtration, laboratory general clarifying and prefiltration
including solvents, deionized water and bioburden reduction, food
grade related filtration, paper, petroleum, chemical industries.
Features
•FDA approval monofilament polypropylene
•Excellent chemical resistance to biological, alkali, mineral acids
and organic acids
•Excellent hydrolysis resistance
•No water and moisture absorbency
•High weldability
•Continuous working temperature 90ºC, maximum working temperature
100ºC
Specifications
•Micron rating from 75um to 3360um
•Open area from 16% to 60%
•Thread diameter from 30um to 1000um
•Thickness from 100um to 1800um
•Roll length: 30-100 meters or customized
•Roll width: commonly in 100cm, 127cm, 150cm, 170cm, 200cm, 300cm
on stock. Customized widths upon demand
•Available in roll, disc, tube, ribbon, bag and plastic molded
filters
Datasheet
| Item Name | Item Number | Mesh Opening(um) | Thread Diameter(um) | Mesh Count
(mesh/inch) | Weave | Applications |
Precision Polypropylene
Open Mesh | PP-540 | 540 | 300 | 30 | Plain | - Water purifiers, liquid filter bags, dust filtration screens
- Filters for tea strainers and plumbing products
- Molded filters for automotive, laboratory analysis and filtration,
chemical and petro-chemical filtration
- Food Industry and industries with strong acids and alkalin
- Food-grade related liquid filtration
|
| PP-410 | 410 | 220 | 40 | Plain |
| PP-270 | 270 | 150 | 60 | Plain |
| PP-200 | 200 | 100 | 80 | Twill |
| PP-150 | 150 | 100 | 100 | Twill |
| PP-75 | 75 | 48 | 200 | Twill |
The data are compiled to the best of our knowledge, NOT a complete
product range. Complete product range is available on request.
Subject to change without notice.
Polypropylene Related Products
SHARE produces high quality customized filter sieve and filter
strainers for automotives, sanitary, packaging, painting, water
treatment, medical and healthcare, chemical processing industries.
We manufacture flat plastic mesh as well as a wide variety of tubular mesh
components by both horizontal and vertical machines, and we process the
widest selection of advanced thermoplastics such as ABS, PP, HDPE, POM, PA66, PA6+GF, TPU, PBT. etc. with or without fiberglass reinforcement. Our plastic filters
are designed for easy installation, assembly and maintenance.
Share’s sales and engineer team with many years of application
expertise and manufacturing experience can help&support
customers at every stage of development.
Custom design
Material selection
Tight tolerance mold manufacture
Rapid prototyping
Validation testing and low or high volume manufacturing
Customer Benefits
• Optimized part design with tight tolerances at a low cost per
unit and mass production
• Extensive material options and industry-best lead times
• High stability, repeatability and reliability
• Expert advice on materials and colors selection according to
customer-specific application
• Technical consultancy, rapid prototype tools and assembly &
installation support
Request For Quotation
To get a quote for your project, here's what we need:
Material (Nylon, polyester, polypropylene, 304 & 316 stainless steel, etc.)
Specifications (Mesh opening, length, width, diameter)
Applications (for us to choose the best shaping technologies)
Contact SHARE today for additional information and how we can help
you with your specific filtration requirements.
Company Profile
Established in 1983, Taizhou Share Filters Co., Ltd. offers a
comprehensive range of woven monofilament filter mesh
fabrics(nylon, polyester, polypropylene etc.) with micron ratings
ranging from 3um to 4mm. We specialize in engineering woven fabrics
into finished or partly finished products.
 | Monofilament Mesh Rolls - 30 years of experience & capabilities
- PA, PET, PP, PE, PPS, PEEK etc.
- Characterized by precise mesh opening, open area and thickness
- Excellent converting capabilities from yarn over weaving to
converted items
|
 | Discs, Tubes, Ribbons, Bags - Cutting, calendering, welding, slitting, sewing, pleating, molding
- Discs, tubes, ribbons, bags etc.
- Various converting capabilities by stamping or slitting technology:
cold, heat, laser, ultrasonic
- Clean, smooth & closed edge quality
- Maximum compatibility with injection molding process
|
 | Plastic Molded Filters - Insert molding and over molding
- Mold design, modeling, prototyping, manufacturing and testing
- High efficiency, excellent particles holding capacity and low
pressure drop
- High stability, repeatability and reliability
- Extensive material options and industry-best lead times
|
Whether you want to improve the quality or reduce the cost of your
existing filter component, plan a new filtration application, or
need assistance with specifications and design validation, SHARE
application specialists with decades of experience will help you
create the best filter solution for your application.
Contact SHARE today for additional information and how we can help
you with your specific filtration requirements.
Packaging & Shipping
For mesh rolls:
1. Rolled on the paper core, 30-70m/roll, packed into PE bags, the product label is attached on the edge of each roll
2. 2-8 rolls per standard export carton
3. Put into PP woven bag to prevent damage during transportation
4. Package belt strengthen
For fabricated & molded filters:
1. Packed into sealed PE bags, 10pcs to 500pcs/bag according to the
actual size, double bagged and the product label is attached in the
inner bag
2. Put into bigger PE bag and then standard export carton
3. Wrapped the outer carton with PE stretch film to prevent damage
during transportation
4. Package belt strengthen if pallets are available
The label contains the following standard information:
item name, manufacturer, material, dimensions, manufacturing date,
order number, batch number etc.
| Port to Port | Door to Door |
| Express(DHL,UPS,FEDEX, EMS) | | 1 - 5 days |
| Air Freight | 1 - 5 days | 4 - 10 days |
| Sea Freight(FCL) | 15 - 30 days | 20 - 35 days |
| Sea Freight(LCL) | 15 - 30 days | 22 - 37 days |
FAQ
1. Where is your factory located? How can I visit there?
We are in Taizhou city, Zhejiang province China. By train, we are
one hour away from Hangzhou and two hours away from Shanghai.
2. Can I get free samples and how long can you deliver them?
We are pleased to provide you with free samples for your evaluation, which will be sent to you within 2 days. Please feel free to reach out to us for samples.
3. How long does a quotation take?
In most cases, we respond within 2 days. If something in RFQ need be confirmed, we will promptly
notify you soon.
4. How quickly can I get my order finished?
The production lead time is dependent on the quantity. Typically,
it takes 5 to 15 working days for us to complete mass production once you have
placed the order.
5. What about your quality control?
By visual inspection, optical or pressure sensitive equipment and
automated 3D image-inspection equipment, our production operators
conduct self-inspections at every stage of the process.
Additionally, we have spot inspections and final inspections
carried out by our Quality Control (QC) team.
6. What's your largest advantage?
One of our core competencies is our excellent converting
capabilities from yarn over weaving to converted items with
professional technical team and quality guarantee and management
for more than 30 years.
7. What kind of payment terms do you accept?
T/T and LC and more.
